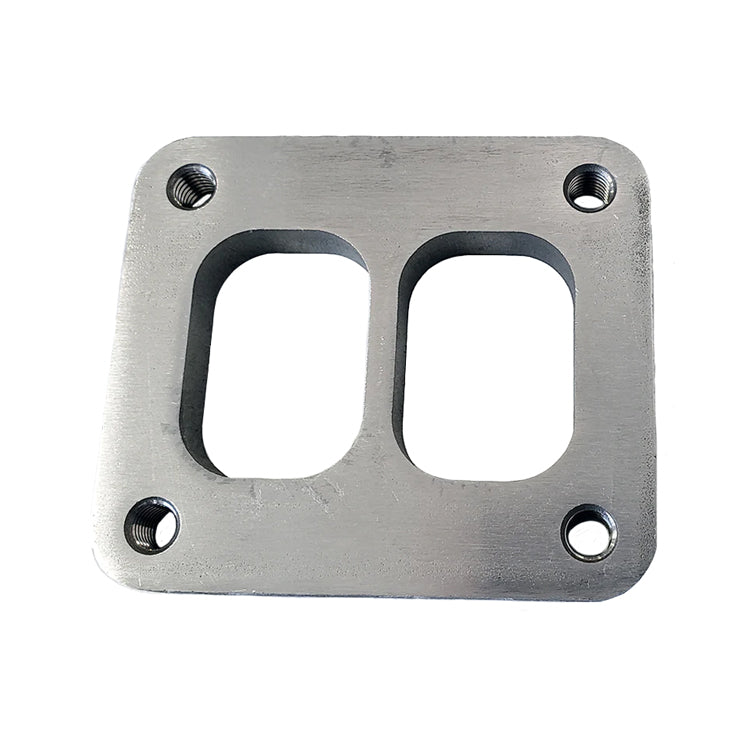

T4 Turbo Divided Inlet Flange 304 Stainless (Tapped Holes) | Ace Race Parts

T4 Turbo Divided Inlet Flange 304 Stainless (M10 x 1.5 Tapped Holes)

by Ace Race Parts
SKU 27104-1
Availability:
222 in stock, ready to be shipped
$ 0
$ 29.50 - $ 29.50
$ 29.50
$ 29.50
$ 29.50

Product Dimension Info

Detailed product dimensions can be found on the main product page. If you need further assistance with product dimensions please email us at your convenience.

Description

TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

The Ace Race Parts brand of Turbo Inlet Flanges are precision machined from 1/2-inch thick 304 Stainless and will not warp or deform. Our Divided T4 Turbo Inlet Flange features M10 x 1.5 threaded bolt holes and can handle the extremely high exhaust temperatures of a turbo manifold.

FEATURES

  • 0.500" Thick, 304 Stainless Steel
  • Will Not Warp or Deform!
  • M10 x 1.5 Threaded Bolt Holes
  • Divided Inlet for Twin Scroll Applications

This T4 Divided Turbo Inlet Flange has a 3.250" x 2.750" bolt pattern and is compatible with the following applications:

  • Generic T4 Divided Turbine Inlets
  • Garrett GT3788
  • GT4088R / GTX4088R
  • GT4094R
  • GT4202R
  • GT4294R
  • GT4508R / GTX4508

Please be sure to verify the bolt pattern of your existing application before purchasing this Divided T4 Turbine Inlet Flange.

DIMENSIONS
Bolt Pattern
3.250" x 2.750"
Threaded Holes
Yes, M10 x 1.5
Flange Thickness
Flange Thickness
The overall thickness of the flange. Note, for "transition" style turbo flanges, this is the "base thickness" measurement.
0.500"
DETAILS
Flange/Gasket Type
Turbo; Inlet
Material Type
304 Stainless
Compatible Component
T4 Turbo Divided Inlet Flange Gasket
Compatible Fasteners
Double Ended Stud - M10-1.50 x 42mm Long - Grade 8.8 Steel
Hex Lock Nut - M10-1.50 - Copper Plate Grade 8.8 Steel
Flat Washer - M10 - Zinc Plated Steel
Split Lock Washer - M10 - Zinc Plated Steel
Notes
Please review the provided product measurements. It is the customer's responsibility to verify that the bolt circle or bolt pattern of their application matches the dimensions provided for our products.
ADDITIONAL INFORMATION
Product Title
T4 Turbo Divided Inlet Flange 304 Stainless (M10 x 1.5 Tapped Holes)
SKU / Part Number
27104-1
Brand / Manufacturer
Ace Race Parts
On-Hand Quantity
On-Hand Quantity
On-hand quantity stocked at our Washington warehouse.
222
UPC Code
840458206056
Product Warranty
Product Warranty
Our detailed product warranty policy can be found here: https://support.aceraceparts.com/en-US/warranty-policy-30022
1-Year Limited Warranty
