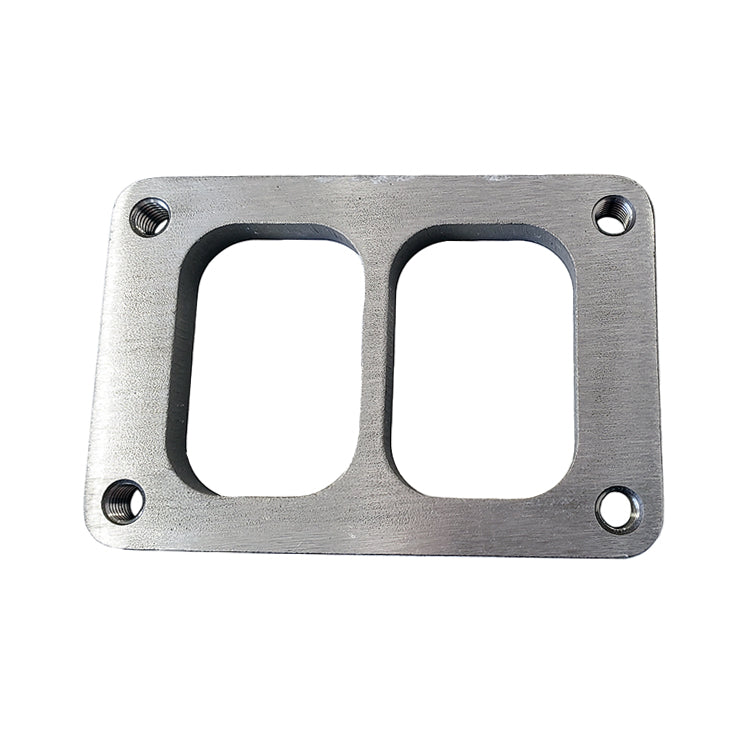

T6 Turbo Divided Inlet Flange 304 Stainless (Tapped Holes) | Ace Race Parts

T6 Turbo Divided Inlet Flange 304 Stainless (M10 x 1.5 Tapped Holes)

by Ace Race Parts
SKU 27105-1
Availability:
111 in stock, ready to be shipped
$ 0
$ 32.50 - $ 32.50
$ 32.50
$ 32.50
$ 32.50

⚠️ PRODUCT COMPATIBILITY ⚠️

This T6 Turbo Inlet Flange features a 4.500" x 2.750" bolt pattern and is compatible with Garrett and Garrett-based turbos that share this specific bolt pattern. However, it may NOT be compatible with BorgWarner or BorgWarner-based T6 turbos, as they utilize a 4.44" x 2.75" bolt pattern. For proper compatibility, please review the dimensional details of this flange and measure your existing turbo flange.

Description

TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

The Ace Race Parts brand of Turbo Inlet Flanges are precision machined from 1/2-inch thick 304 Stainless and will not warp or deform. Our Divided T6 Turbo Inlet Flange features M10 x 1.5 threaded bolt holes and can handle the extremely high exhaust temperatures of a turbo manifold.

FEATURES

  • 0.500" Thick, 304 Stainless Steel
  • Will Not Warp or Deform!
  • M10 x 1.5 Threaded Bolt Holes
  • Divided Inlet for Twin Scroll Applications

This T6 Divided Turbo Inlet Flange has a 4.500" x 2.750" bolt pattern and is compatible with the following applications:

  • Generic Garrett T6 Divided Turbine Inlets
  • Note: May NOT be compatible with some Borg Warner T6 Turbos, some VS Racing T6 Turbos, or some Forced Induction T6 Turbos. Turbos that utilize the Borg Warner 4.44" x 2.75" bolt pattern are NOT compatible with this flange.

Please be sure to verify the bolt pattern of your existing application before purchasing this Divided T6 Turbine Inlet Flange.

DIMENSIONS
Bolt Pattern
4.500" x 2.750"
Threaded Holes
Yes, M10 x 1.5
Flange Thickness
Flange Thickness
The overall thickness of the flange. Note, for "transition" style turbo flanges, this is the "base thickness" measurement.
0.500"
DETAILS
Flange/Gasket Type
Turbo; Inlet
Material Type
304 Stainless
Compatible Component
T6 Turbo Divided Inlet Flange Gasket
Compatible Fasteners
Double Ended Stud - M10-1.50 x 42mm Long - Grade 8.8 Steel
Hex Lock Nut - M10-1.50 - Copper Plate Grade 8.8 Steel
Flat Washer - M10 - Zinc Plated Steel
Split Lock Washer - M10 - Zinc Plated Steel
Notes
Please review the provided product measurements. It is the customer's responsibility to verify that the bolt circle or bolt pattern of their application matches the dimensions provided for our products.
ADDITIONAL INFORMATION
Product Title
T6 Turbo Divided Inlet Flange 304 Stainless (M10 x 1.5 Tapped Holes)
SKU / Part Number
27105-1
Brand / Manufacturer
Ace Race Parts
On-Hand Quantity
On-Hand Quantity
On-hand quantity stocked at our Washington warehouse.
111
UPC Code
840458206063
Product Warranty
Product Warranty
Our detailed product warranty policy can be found here: https://support.aceraceparts.com/en-US/warranty-policy-30022
1-Year Limited Warranty
