3.000" Flex Bellow Assembly 304 Stainless - Ace Race Parts

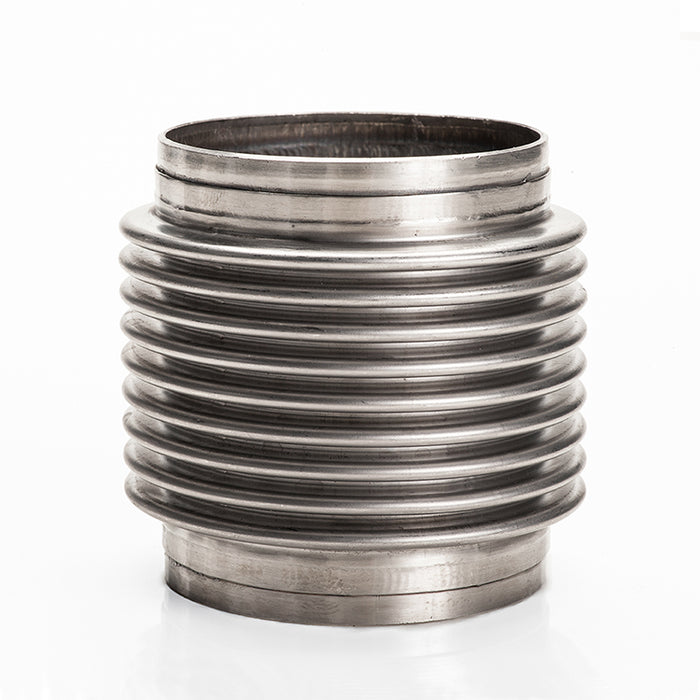

3.000" Flex Bellow (with Inner Liner) x 4.000" Overall Length - 304 Stainless

by Ace Race Parts
SKU 24019
Availability:
371 in stock, ready to be shipped
$ 47.95 - $ 47.95
$ 47.95
$ 47.95 - $ 47.95
$ 47.95

Product Dimension Info

Detailed product dimensions can be found on the main product page. If you need further assistance with product dimensions please email us at your convenience.

FEATURES

  • 100% 304 Stainless Steel Construction
  • 2-Ply Bellow Design
  • Slip-Fit Connection Type (must be welded)
  • Directional Smooth Bore Inner Liner
  • Extremely Durable in High Pressure Applications
  • Pressure Tested (data listed below): 145 psi @ 68°F and 72.5 psi @ 842°F
  • Helium Leak Tested Prior to Shipment

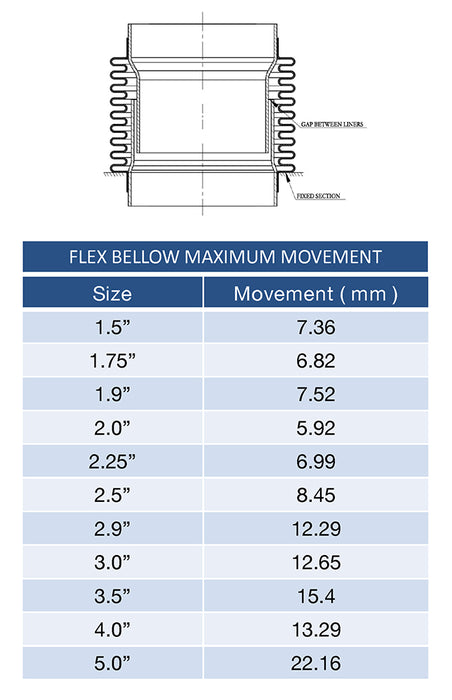

Our 304 Stainless Steel Flex Bellows minimize the potential for cracking in turbo manifolds, dump tubes, downpipes and other automotive and industrial applications. Utilizing a slip-fit design that allows the matching tube size material to slip into the bellow, our exhaust flex bellows feature a smooth bore directional inner liner that needs to be placed in the flow of the exhaust gas.

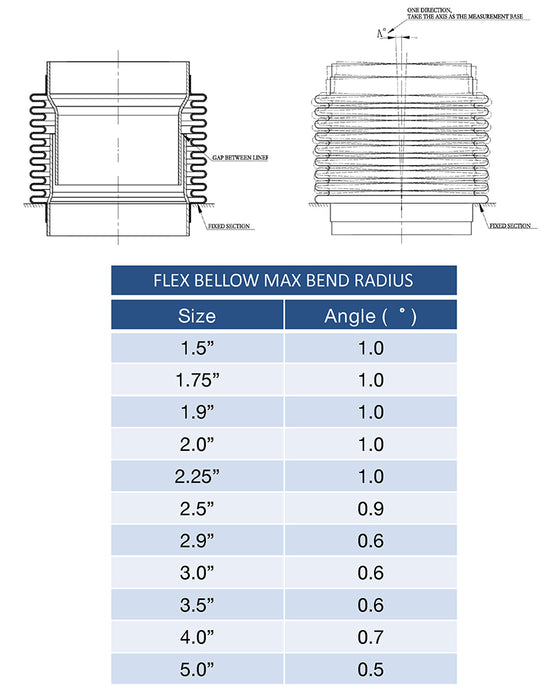

Please note, while this style Flex Bellow is a great choice for applications that experience elongation and compression it is not intended to be used in applications where a large amount of axial flex is required. This specific 3.000" ID Flex Bellow offers a maximum bend angle of 0.6°.
