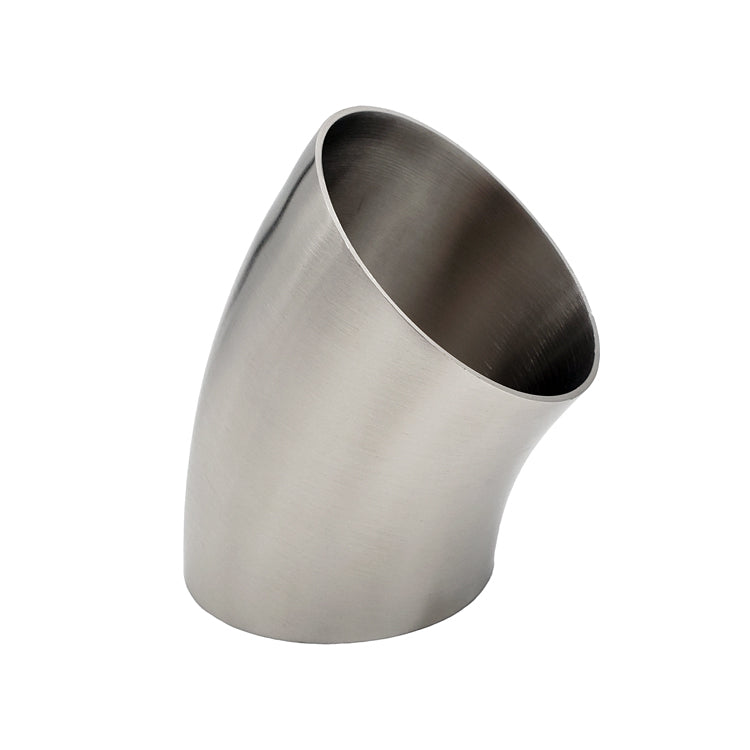

1.750" 16ga 45° Mandrel Bend - (2.250" CLR) - Brushed Finish - 304 Stainless

SKU 21006
Availability:
341 in stock, ready to be shipped
Original price $ 0
Original price $ 9.50 - Original price $ 9.50
Original price
Current price $ 9.50
$ 9.50 - $ 9.50
Current price $ 9.50

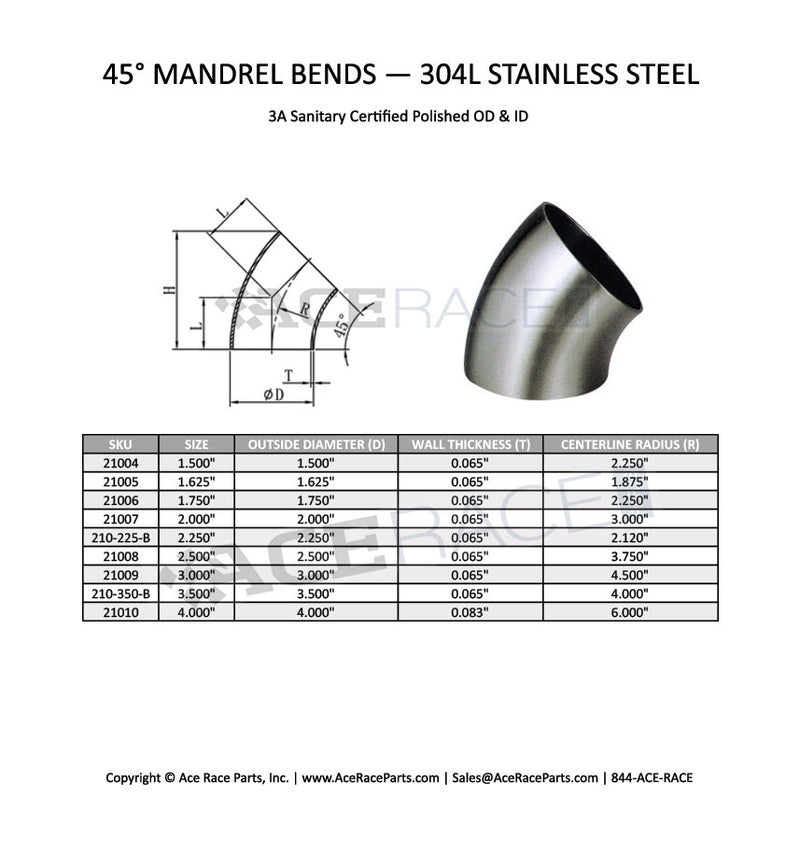

Product Dimension Info

Detailed product dimensions can be found on the main product page. If you need further assistance with product dimensions please email us at your convenience.

Description

TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

The Ace Race Parts brand of sanitary style 45° 304 Stainless Mandrel Bends is the fabricator's and manufacturer's choice for fabricating downpipes, dump tubes, exhaust systems, headers, teardrop exits, and other custom components. Our mandrel elbows offer a consistent, high quality welding experience with virtually no need for surface preparation prior to welding.

FEATURES

  • Fabricate Downpipes, Dump Tubes, Headers, Teardrops, and more!
  • Precision Bent 304 Stainless Steel
  • Sanitary Polished Finish on the OD and ID
  • Available in a Wide Range of Centerline Radius Options
  • Virtually No Need for Surface Preparation Prior to Welding

Our 304 Stainless steel mandrel bent exhaust tubing is a perfect match for our Stainless Tube, V-Band Clamps & Flanges, Transition Reducers, Flex Couplings & Flex Bellows2-Bolt & 3-Bolt Exhaust Flanges and Bottle Style and Ultra Quiet Resonators!

DETAILS
Outside Diameter
Outside Diameter
This is an approximate dimension. Material tolerances allow for this dimension to be ±0.025".
1.750"
Wall Thickness
Wall Thickness
This is an approximate dimension. Tolerances allow for a range of ±10% of the stated wall thickness (eg: 16ga material can be as thin as 0.0585" or as thick as 0.0715"). In most cases, 16ga material has a measured wall thickness of 0.059" and 14ga has a measured wall thickness of 0.079".
16ga (0.065"±)
Inside Diameter
Inside Diameter
This is an approximate dimension.
1.620"
Bend Angle
45°
Centerline Radius (CLR)
Centerline Radius (CLR)
The CLR of a bend is the distance from the center of the bending die to the axis (centerline) of the tube or pipe.
2.250"
Leg/Tangent Length
Leg/Tangent Length
The measured length of "straight" material after the bend. Unless noted, this measurement is equal on both sides of the bend.
None
Finish
Finish
• "Brushed Finish" material has a #4 180 Grit Brushed finish on both the OD and the ID of the item.

• "Polished OD" material has a #7 Polished & Buffed finish on the OD of the item.

Please note that in 95% of applications, the material finishes can be mixed and matched without any problems.
Brushed Finish (OD & ID)
NOTES
Dimensional Disclaimer
Dimensional Disclaimer
We strive to provide the most accurate dimensional data possible on our products. Due to material specification tolerances no measurement is exact.
Due to the allowable tolerances of tube size material all dimensions are approximate only. We make no guarantees that the OD, ID, or Wall Thickness are exact dimensions. If you require exact, measured dimensions for a specific item please contact us at sales@aceraceparts.com
ADDITIONAL INFORMATION
Product Title
1.750" 16ga 45° Mandrel Bend - (2.250" CLR) - Brushed Finish - 304 Stainless
SKU / Part Number
21006
Brand / Manufacturer
Ace Race Parts
On-Hand Quantity
On-Hand Quantity
On-hand quantity stocked at our Washington warehouse.
341
UPC Code
840458202232
Product Warranty
Product Warranty
Our detailed product warranty policy can be found here: https://support.aceraceparts.com/en-US/warranty-policy-30022
5-Year Limited Warranty
