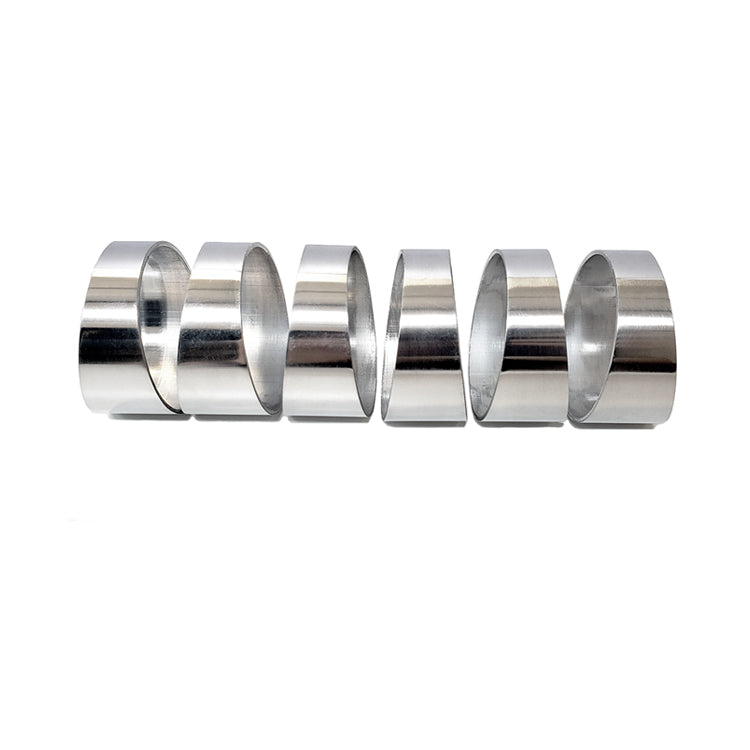

3.000" 16ga Long Radius (1.5D) Pie Cut - Polished OD - Aluminum (90° Bend - 6 Pieces Total)

by Ace Race Parts
SKU 11552
Availability:
56 in stock, ready to be shipped
$ 0
$ 22.50 - $ 22.50
$ 22.50
$ 22.50
$ 22.50

Product Dimension Info

Detailed product dimensions can be found on the main product page. If you need further assistance with product dimensions please email us at your convenience.

Description

TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

The Ace Race Parts brand of 6061-T6 Aluminum Pie Cuts provides fabricators and manufacturers of intercooler piping, intakes, and other custom components a consistent and high quality welding experience with virtually no need for surface preparation prior to welding.

FEATURES

  • 6061-T6 Aluminum — Polished Finish
  • Creates a Simple or Complex Standard Radius Bend
  • Virtually No Need for Surface Preparation Prior to Welding
  • Fabricate Intercooler Piping, Intakes, and more!

This set of polished 6061-T6 Aluminum Pie Cuts has an outside diameter of 3.000", a wall thickness of 0.059", and a centerline radius (CLR) of 4.500" (1.5D). Our Aluminum Pie Cuts are sold as a 6 piece set, each piece cut to an overall angle of 15°, for a total bend angle of 90°.

Our aluminum pie cuts are cleaned and highly polished to ensure a clean finish on the ends and the surface of the material and is the perfect match for our Aluminum Tube, V-Band Clamps and Flanges, 4-Ply Silicone Couplings, and Stainless Steel T-Bolt Clamps.

DETAILS
Outside Diameter
Outside Diameter
This is an approximate dimension. Material tolerances allow for this dimension to be ±0.025".
3.000"
Wall Thickness
Wall Thickness
This is an approximate dimension. Tolerances allow for a range of ±10% of the stated wall thickness (eg: 16ga material can be as thin as 0.0585" or as thick as 0.0715"). In most cases, 16ga material has a measured wall thickness of 0.059" and 14ga has a measured wall thickness of 0.079".
16ga (0.065"±)
Inside Diameter
Inside Diameter
This is an approximate dimension.
2.870"
Total Bend Degree
Total Bend Degree
The total bend degree of the combined pieces in the set of pie cuts.
90°
Centerline Radius (CLR)
Centerline Radius (CLR)
The CLR of a bend is the distance from the center of the bending die to the axis (centerline) of the tube or pipe.
4.500"
Angle Per Piece
Angle Per Piece
The total angle of a single "piece of the pie".
15°
Pie Cut Quantity
Pie Cut Quantity
The total number of individual pie cuts per set.
6 Pieces Total (15° x 6 = 90°)
Finish
Finish
References the surface finish of the material.
Polished OD
ADDITIONAL INFORMATION
Product Title
3.000" 16ga Long Radius (1.5D) Pie Cut - Polished OD - Aluminum (90° Bend - 6 Pieces Total)
SKU / Part Number
11552
Brand / Manufacturer
Ace Race Parts
On-Hand Quantity
On-Hand Quantity
On-hand quantity stocked at our Washington warehouse.
56
UPC Code
840458200542
Product Warranty
Product Warranty
Our detailed product warranty policy can be found here: https://support.aceraceparts.com/en-US/warranty-policy-30022
1-Year Limited Warranty
