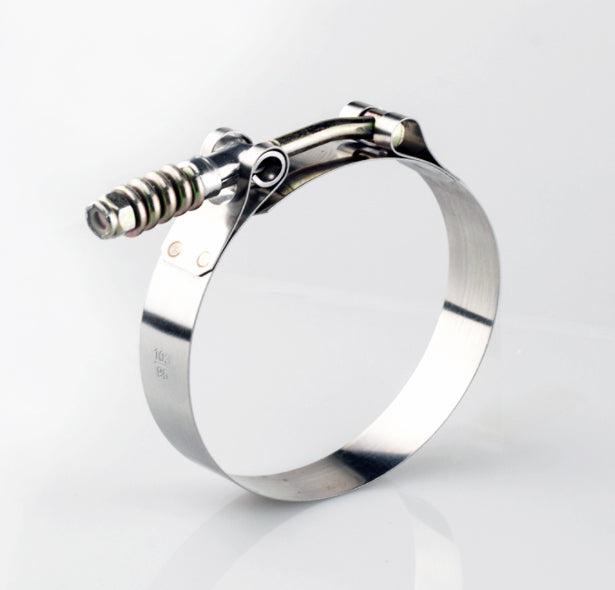

Light Duty Spring Loaded T-Bolt Clamp 304 Stainless - For 2.000" ID Silicone (Clamping Range: 2.25" - 2.55")

Light Duty Spring Loaded T-Bolt Clamp 304 Stainless - For 2.000" ID Silicone (Clamping Range: 2.25" - 2.55")

by Ace Race Parts
SKU 23020
Availability:
156 in stock, ready to be shipped
$ 0
$ 8.00 - $ 8.00
$ 8.00
$ 8.00
$ 8.00

Product Dimension Info

Detailed product dimensions can be found on the main product page. If you need further assistance with product dimensions please email us at your convenience.

Description

The Ace Race Parts brand of Spring Loaded T-Bolt Hose Clamps are manufactured from 304 Stainless Steel and feature smooth, rounded edges to ensure that they can safely be used with soft silicone hose materials. Our Spring Loaded T-Bolt Clamps are a leak-free and corrosion-resistant option for securing silicone hoses in automotive, diesel, marine, and industrial applications.

FEATURES

  • 304 Stainless Steel
  • Spring Loaded T-Bolt Clamp
  • Capable of Handling High Boost Applications
  • Matching Silicone Hose: 2.000" ID, 4-Ply

When selecting one of our hose clamps please choose the T-Bolt Clamp based on your SILICONE HOSE ID SIZE. If you are unsure of what size clamp you need please contact us.

DETAILS
Matching Silicone Size
Matching Silicone Size
Silicone sizes are referenced by the inside diameter (ID) of the material.
2.000"
Clamping Range
Clamping Range
The approximate clamping range of the clamp.
2.250" - 2.550"
Material Type
304 Stainless
Spring Rate
1900 lbs/in [12.5MPa], capable of generating a load of 300 lbs
Torque Specs
50 in.-lbs [5.6N.m]
Compatible Products
2.000" ID 4-Ply Reinforced Silicone Hose Coupling (3.000" Long)
2.000" ID 4-Ply Reinforced Silicone Hose Coupling (12" Overall Length)
2.000" ID 4-Ply Reinforced Silicone Hump Hose (3.000" Long)
2.000" ID 4-Ply Reinforced Silicone 45° Elbow
2.000" ID 4-Ply Reinforced Silicone 90° Elbow
2.000" ID x 2.500" ID 4-Ply Reinforced Silicone Reducer
2.000" ID x 2.750" ID 4-Ply Reinforced Silicone Reducer
2.000" ID x 3.000" ID 4-Ply Reinforced Silicone Reducer
2.000" ID x 4.000" ID 4-Ply Reinforced Silicone Reducer
1.500" ID x 2.000" ID 4-Ply Reinforced Silicone 45° Reducing Elbow
1.500" ID x 2.000" ID 4-Ply Reinforced Silicone 90° Reducing Elbow
2.000" ID x 2.500" ID 4-Ply Reinforced Silicone 45° Reducing Elbow
2.000" ID x 2.500" ID 4-Ply Reinforced Silicone 90° Reducing Elbow
2.000" ID x 3.000" ID 4-Ply Reinforced Silicone 45° Reducing Elbow
2.000" ID x 3.000" ID 4-Ply Reinforced Silicone 90° Reducing Elbow
2.000" ID x 3.500" ID 4-Ply Reinforced Silicone 45° Reducing Elbow
2.000" ID x 3.500" ID 4-Ply Reinforced Silicone 90° Reducing Elbow
2.000" ID x 4.000" ID 4-Ply Reinforced Silicone 90° Reducing Elbow
ADDITIONAL INFORMATION
Product Title
Light Duty Spring Loaded T-Bolt Clamp 304 Stainless - For 2.000" ID Silicone (Clamping Range: 2.25" - 2.55")
SKU / Part Number
23020
Brand / Manufacturer
Ace Race Parts
On-Hand Quantity
On-Hand Quantity
On-hand quantity stocked at our Washington warehouse.
156
UPC Code
840458204717
Product Warranty
Product Warranty
Our detailed product warranty policy can be found here: https://support.aceraceparts.com/en-US/warranty-policy-30022
1-Year Limited Warranty
