3.500" V-Band Assembly Titanium/Stainless Combination - Ace Race Parts

3.500" V-Band Assembly "Male/Female" - Titanium/Stainless Combination

by Ace Race Parts
SKU 72010-1
Availability:
40 in stock, ready to be shipped
$ 0
$ 165.95 - $ 165.95
$ 165.95
$ 165.95
$ 165.95

V-Band Clamp and Flange Dimensions

Detailed product dimensions can be found in a data table on the main product page. Additionally, a PDF showing more detailed dimensions of our V-Band Flange can be found here: V-Band Flange Dimensions.

Description

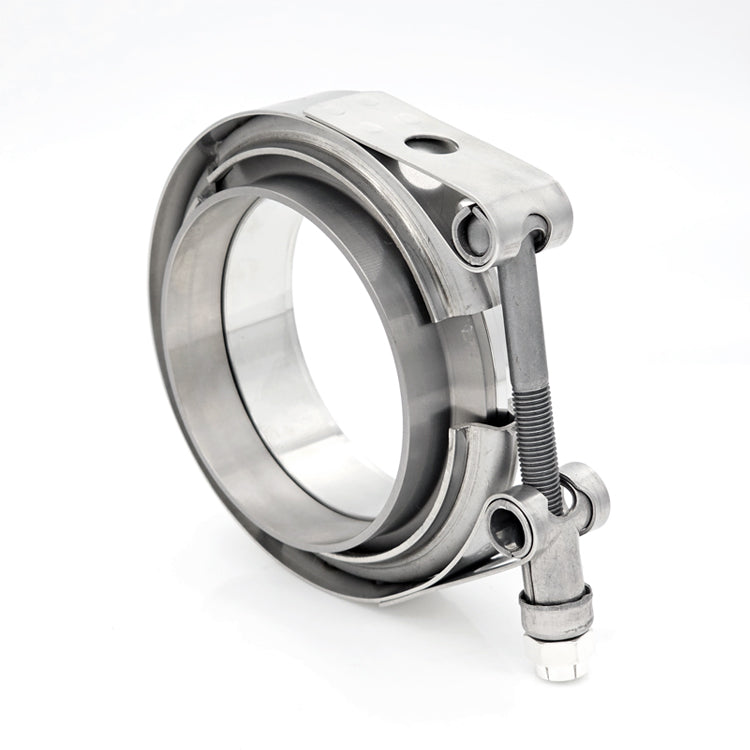

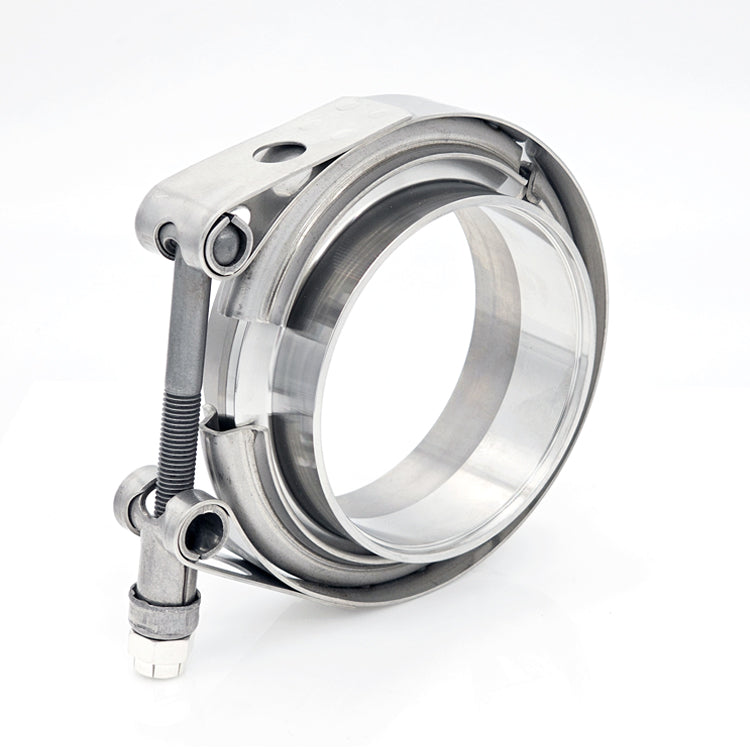

Our Titanium/Stainless Combination V-Band Assemblies are precision CNC machined and feature a 304 Stainless V-Band Clamp, a "Male" style 304 Stainless V-Band Flange and a "Female" style CP2 Titanium V-Band Flange.

FEATURES:

  • Combines two different material types in a single clamp
  • 304 Stainless V-Band Clamp
  • 304 Stainless Male V-Band Flange
  • CP2 Titanium Female Flange
  • Counterbored to fit matching tube size
  • Suitable for a wide range of uses, including automotive, diesel, and industrial applications

The seating surface (the area where the two flanges meet) of our "Male" 304 Stainless V-Band Flange and "Female" CP2 Titanium V-Band Flange utilizes an interlocking flange design to create an air-tight, leak free seal. The weld side of our Titanium V-Band Flange is machined to allow the matching tube size material to slip into the V-Band Flange; whereas, the weld side of our Stainless V-Band Flange is precision machined with a counterbore. The counterbore is machined to a width of 0.065" and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.

This Titanium/Stainless Combination V-Band Clamp Assembly includes the following items:

  • 304 Stainless Steel V-Band Clamp [Quantity: 1]
  • 304 Stainless "Male" V-Band Flange [Quantity: 1]
  • CP2 Titanium "Female" V-Band Flange [Quantity: 1]
    • DIMENSIONS
    Matching Tube Size
    Matching Tube Size
    The inside diameter of the counterbore of the flange. This should match the outside diameter of the tube size material that will be welded to the flange.
    3.500"
    Overall Flange OD
    Overall Flange OD
    The overall diameter of the flange — measured across the widest part of the seating surface of the flange.
    4.232"
    Flange Apex Width
    Flange Apex Width
    The edge thickness of the flange, not including the taper. Note, this measurement is of a single flange, not the combined apex width of both flanges.
    0.137"
    Flange Base Width
    Flange Base Width
    Measured from the bottom of the flange, including the taper, up to the base of the flange neck.
    0.210"
    DETAILS
    Clamp Type
    V-Band, Standard T-Bolt
    Fastener Torque Specs
    Dry: 10-14 Ft/Lbs | Lubed: 7.2-10 Ft/Lbs
    ADDITIONAL INFORMATION
    Product Title
    3.500" V-Band Assembly "Male/Female" - Titanium/Stainless Combination
    SKU / Part Number
    72010-1
    Brand / Manufacturer
    Ace Race Parts
    On-Hand Quantity
    On-Hand Quantity
    On-hand quantity stocked at our Washington warehouse.
    40
    UPC Code
    840458212743
    Product Warranty
    Product Warranty
    Our detailed product warranty policy can be found here: https://support.aceraceparts.com/en-US/warranty-policy-30022
    1-Year Limited Warranty
