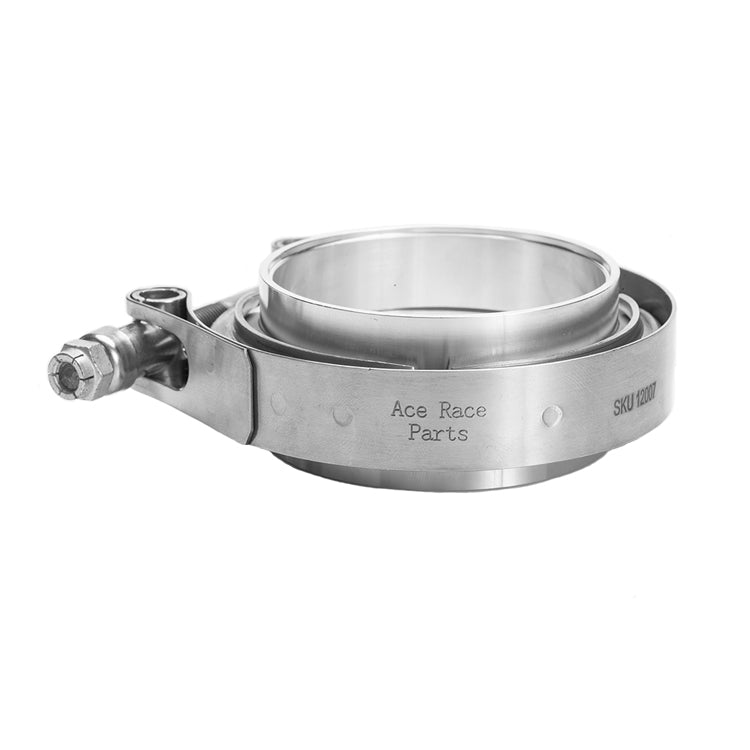

5.000" V-Band Assembly - Aluminum "Male + O-Ring/Female" Flanges, 304 Stainless Clamp

SKU 12012
Availability:
45 in stock, ready to be shipped
Original price $ 0
Original price $ 78.95 - Original price $ 78.95
Original price
$ 78.95
$ 78.95
Current price
$ 78.95

V-Band Clamp and Flange Dimensions

Detailed product dimensions can be found in a data table on the main product page. Additionally, a PDF showing more detailed dimensions of our V-Band Flange can be found here: V-Band Flange Dimensions.

Description

Ace Race Parts Aluminum V-Band Assemblies are precision CNC machined from 6061-T6 Aluminum and feature a 304 stainless V-Band Clamp, a "Male + O-Ring" style Aluminum V-Band Flange and a "Female" style Aluminum V-Band Flange. Aluminum V-Band Flanges and Clamps are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, marine, and industrial applications.

FEATURES:

  • CNC machined from solid 6061 Aluminum billet
  • Male + O-Ring/Female Interlocking Flanges
  • High Temperature O-Ring
  • Counterbored to fit matching tube size
  • Suitable for a wide range of uses, including automotive, diesel, and industrial applications

The seating surface (the area where the two flanges meet) of our "Male+O-Ring/Female" interlocking style Aluminum V-Band Flanges utilize an interlocking flange design to create an air-tight, leak free seal. In extremely high temperature applications, where a Buna O-Ring will not be suitable, the interlocking style flange design allows for a leak free seal without the use of the O-Ring. The weld side of our Aluminum V-Band Flanges are CNC machined with a counterbore to allow the matching tube size material to slip into the V-Band Flange and be welded in place. The V-Band Flange counterbore is machined to be 0.065" wide and allows for the inside diameter (ID) of 16 gauge wall thickness tube to align perfectly with the ID of the V-Band Flange without any restrictions or reductions.

This Aluminum V-Band Clamp Assembly includes the following items:

  • 304 Stainless Steel V-Band Clamp [Quantity: 1]
  • "Male + O-Ring" Aluminum V-Band Flange [Quantity: 1]
  • "Female" Aluminum V-Band Flange [Quantity: 1]
DIMENSIONS
Matching Tube Size
Matching Tube Size
The inside diameter of the counterbore of the flange. This should match the outside diameter of the tube size material that will be welded to the flange.
5.000"
Overall Flange OD
Overall Flange OD
The overall diameter of the flange — measured across the widest part of the seating surface of the flange.
5.750"
Flange Apex Width
Flange Apex Width
The edge thickness of the flange, not including the taper. Note, this measurement is of a single flange, not the combined apex width of both flanges.
0.137"
Flange Base Width
Flange Base Width
Measured from the bottom of the flange, including the taper, up to the base of the flange neck.
0.210"
DETAILS
Clamp Type
V-Band, Standard T-Bolt
Fastener Size
5/16"-24
Removable T-Bolt
Removable T-Bolt
• "No" = If stripped or damaged a new clamp will be required.
• "Yes" = If stripped or damaged a replacement T-Bolt Fastener Kit can be purchased.
No
Fastener Torque Specs
Dry: 10-14 Ft/Lbs | Lubed: 7.2-10 Ft/Lbs
ADDITIONAL INFORMATION
Product Title
5.000" V-Band Assembly - Aluminum "Male + O-Ring/Female" Flanges, 304 Stainless Clamp
SKU / Part Number
12012
Brand / Manufacturer
Ace Race Parts
On-Hand Quantity
On-Hand Quantity
On-hand quantity stocked at our Washington warehouse.
45
UPC Code
840458200979
Product Warranty
Product Warranty
Our detailed product warranty policy can be found here: https://support.aceraceparts.com/en-US/warranty-policy-30022
1-Year Limited Warranty
