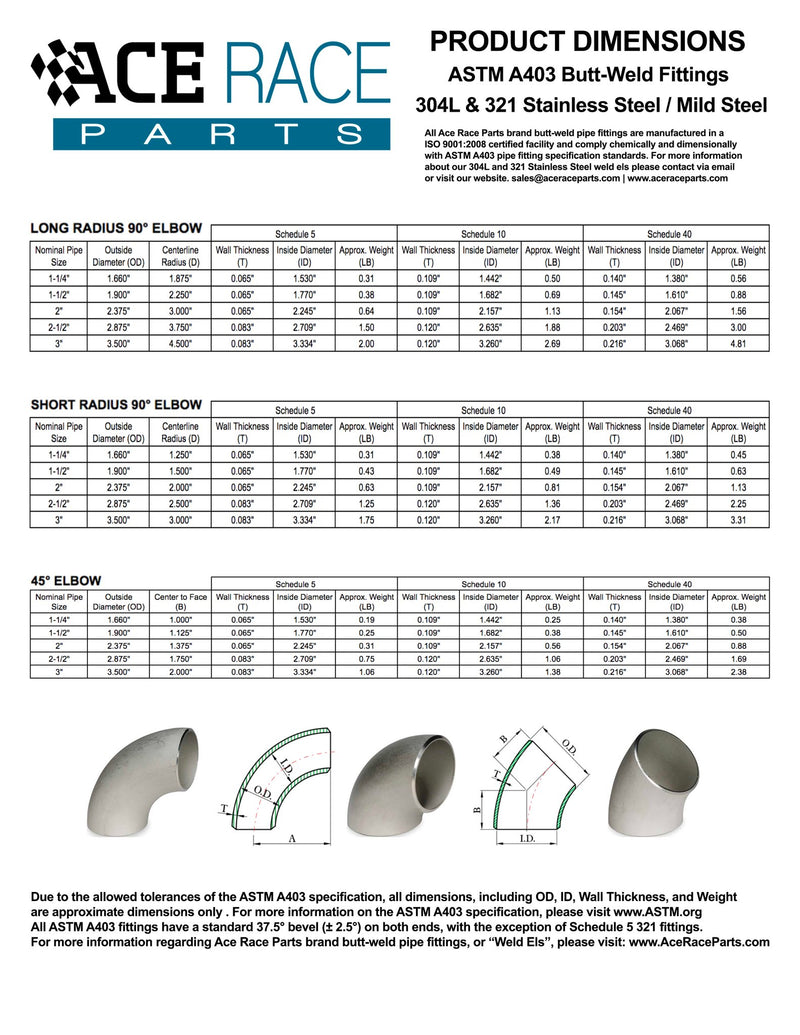

Nominal Pipe Size Chart | Turbo Manifold Weld Els | Ace Race Parts
2" Schedule 10 45° Elbow 321 Stainless - Ace Race Parts
2" Schedule 10 45° Elbow 321 Stainless - Ace Race Parts
Nominal Pipe Size Chart | Turbo Manifold Weld Els | Ace Race Parts
2" Schedule 10 45° Elbow 321 Stainless - Ace Race Parts

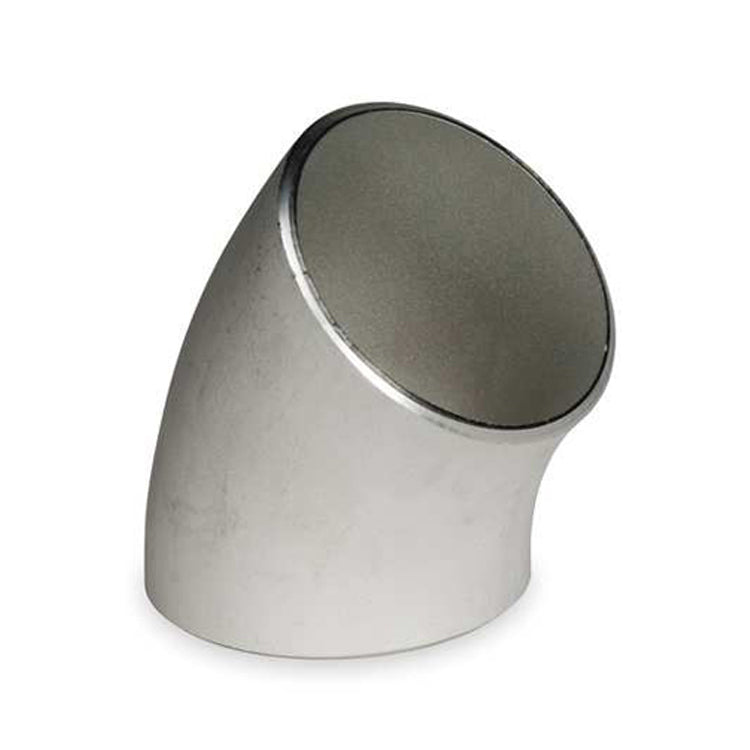

2" Schedule 10 45° Elbow 321 Stainless

by Ace Race Parts
SKU 51060
Availability:
93 in stock, ready to be shipped
$ 15.50 - $ 15.50
$ 15.50
$ 15.50 - $ 15.50
$ 15.50

⚠️ Nominal Pipe Size item. Actual dimensions differ from tube size; pipe and tube are not interchangeable. Pipe vs tube · Tolerances

Dimensions at a glance

Nominal Size2"
Actual OD2.375" (approx.)
WallSchedule 10 (0.109"±)
ID2.157" (Approx.)
Fitting45°
Alloy321 Stainless

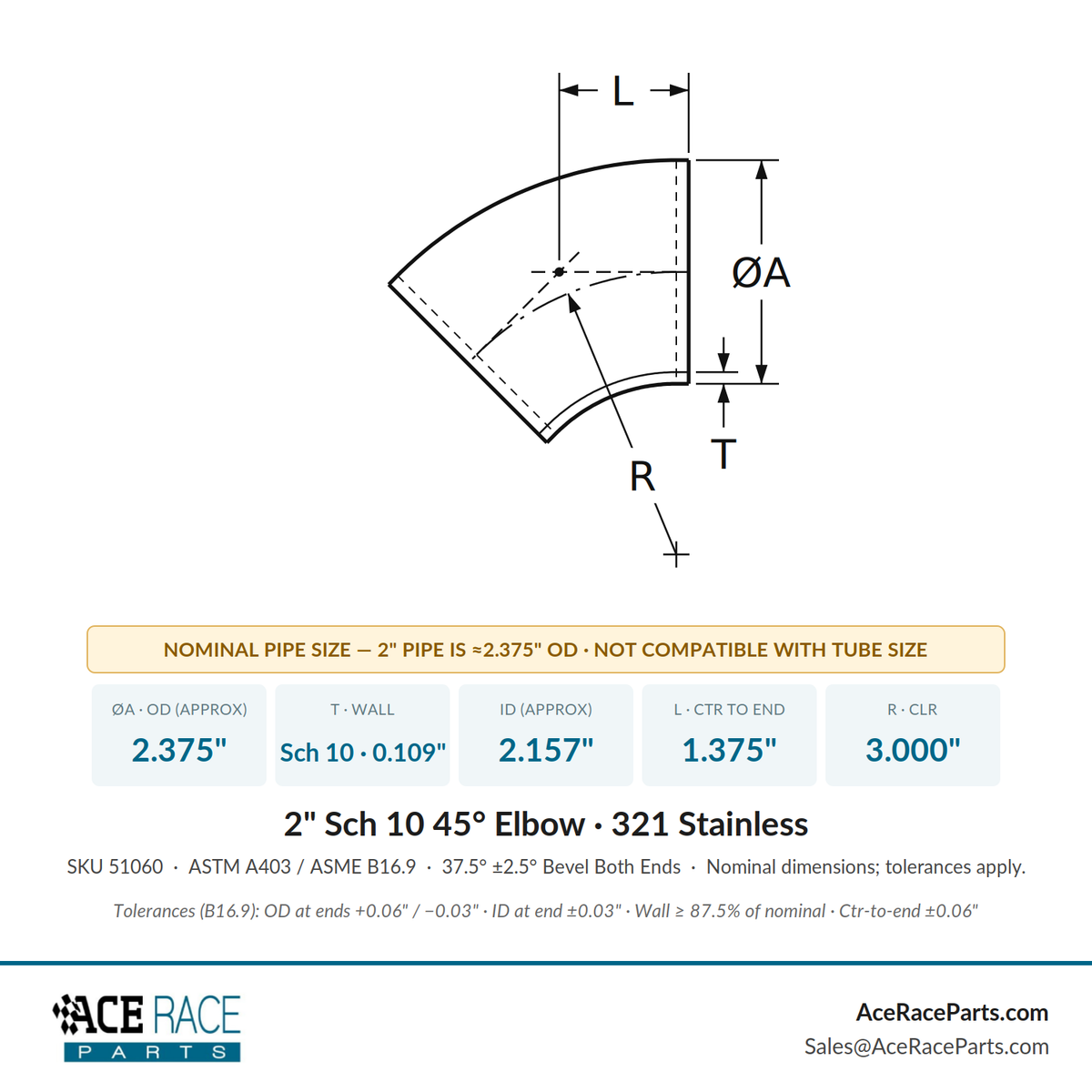

View drawing

Pipe size dimensions are approximate; ASTM pipe and fitting tolerances apply. Pipe size and tube size are not interchangeable. Need another dimension? Email us and we'll help.

The Fabricator's Choice for High Horsepower Turbo Manifold Builds!

The Ace Race Parts brand of Schedule 10 45° Weld Els are available in 321 Stainless! Our 321 Stainless Weld Els offer superior corrosion resistance in high temperature applications — especially applications that will see extended periods of wide open throttle (eg: a track car) or will see repeated high heat cycling (eg: a drag car that sees significant cooling between passes). With a slight addition of Titanium to stabilize the alloy at high temperatures, 321 Stainless is an excellent choice for turbo manifolds that will be exposed to high levels of heat over a prolonged period of time.

FEATURES

  • 321 Stainless Steel
  • Allows for a Smooth, Unobstructed Flow of Exhaust Gas
  • Durable Enough for a Wide Variety of Turbo Manifold Applications
  • Capable of Withstanding 1,600°F
  • 37.5° Beveled Ends
  • Manufactured to ASTM A403/ASME B16.9 specifications

304 Stainless vs 321 Stainless

One major chemical difference between 304 and 321 Stainless is the addition of Titanium (Ti) in 321 stainless to help "stabilize" the alloy and to reduce the risk of corrosion in the heat-affected zone. When 304 Stainless is heated above 1,292°F for an extended period of time it may suffer from weld decay. Weld decay is reduced by the addition of titanium, making 321 Stainless ideal for use in turbo exhaust manifolds and other exhaust products that see high levels of heat over prolonged periods of time. Although 304 Stainless is more than suitable for most turbo manifold and other exhaust applications, 321 Stainless is the superior choice for heat-related corrosion resistance.

Ace Race Parts brand Weld Els are available in nominal pipe sizes ranging from 1-1/4" to 3" and are available in popular alloys like 304 Stainless and 321 Stainless. A wide range of wall thickness options are available, including Schedule 5, Schedule 10, and Schedule 40. Stainless Weld Els can be paired with Stainless Steel Pipe and Stainless Steel Merge Collectors to create a variety of turbo manifold styles.
