5.000" V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp

SKU 22114
Availability:
45 in stock, ready to be shipped
Original price $ 0
Original price $ 71.25 - Original price $ 71.25
Original price
Current price $ 71.25
$ 71.25 - $ 71.25
Current price $ 71.25

V-Band Clamp and Flange Dimensions

Detailed product dimensions can be found in a data table on the main product page. Additionally, a PDF showing more detailed dimensions of our V-Band Flange can be found here: V-Band Flange Dimensions.

Description

QUICK RELEASE STYLE V-BAND CLAMP — LEAK-FREE INTERLOCKING FLANGE DESIGN

Ace Race Parts brand Quick-Release style V-Band Assemblies are precision CNC machined and feature a 304 Stainless Steel Quick Release style V-Band Clamp and a set of 304 Stainless Steel interlocking "Male/Female" V-Band Flanges. Our Quick Release style V-Band Clamps feature a quick-release latch and a replaceable T-Bolt section that allows for quick assembly and disassembly. For applications where frequent removal of the clamp is required we recommend using our Quick Release style V-Band Clamps and compatible V-Band Flanges.

FEATURES:

  • Precision CNC Machined from 304 Stainless Steel
  • Male/Female style Interlocking Flanges
  • Counterbored to fit matching tube size material
  • Removable & Replaceable T-Bolt Fastener
  • Perfect for exhaust systems, turbo manifolds, and more!

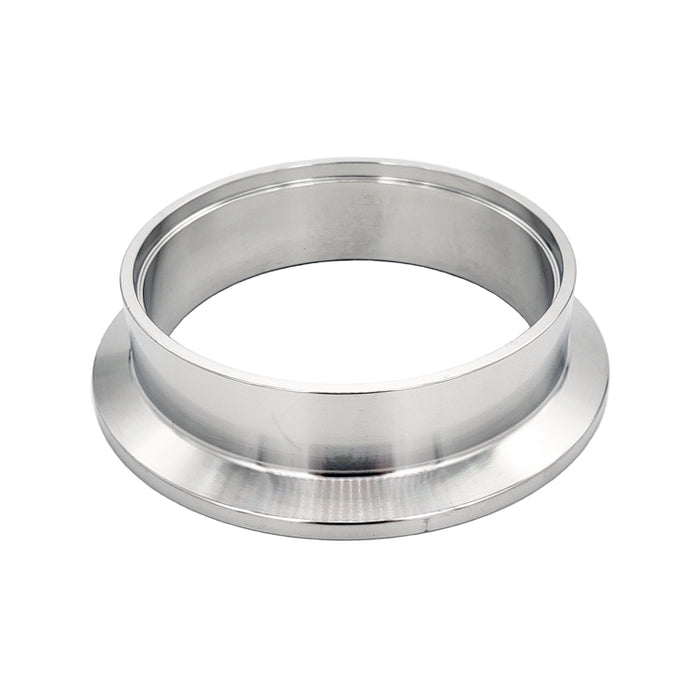

Our V-Band Flanges utilize an interlocking flange design that ensures a leak-free seal without the need for a gasket and features a counterbore on the weld side of the flange that allows the matching tube size material to slip into the flange. The counterbore is machined to a width of 0.065" and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.

If you need assistance in finding a matching V-Band Clamp or Flange for an existing application please review our "How To Measure A V-Band Flange" information here: How to Measure a V-Band Flange.

This V-Band Clamp Assembly includes the following items:

  • (1) V-Band Clamp, Quick Release, 304 Stainless (SKU: 22130)

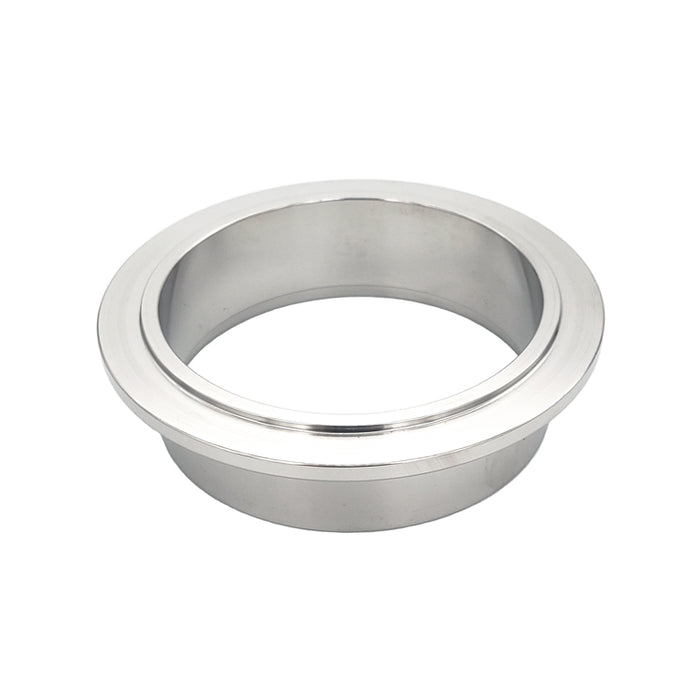

  • (1) "Male" Interlocking V-Band Flange, 304 Stainless (SKU: 22146

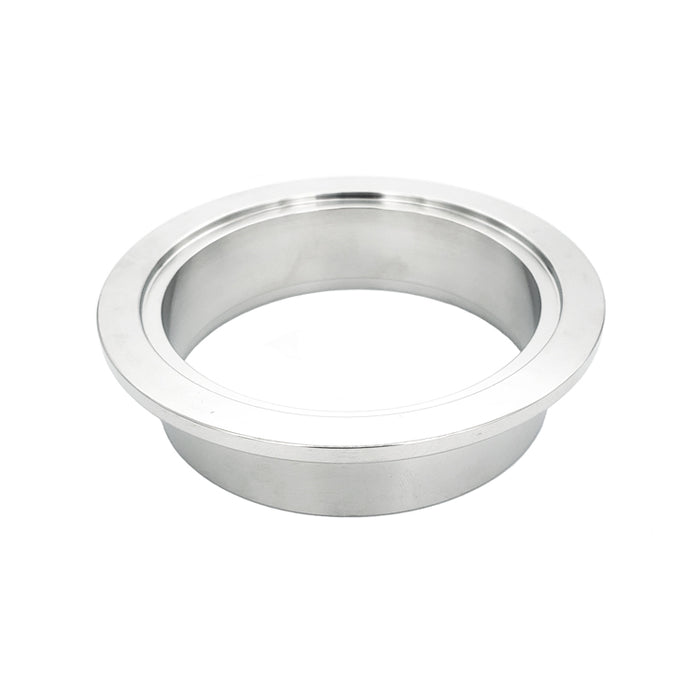

  • (1) "Female" Interlocking V-Band Flange, 304 Stainless (SKU: 22162)
DIMENSIONS
Matching Tube Size
Matching Tube Size
The inside diameter of the counterbore of the flange. This should match the outside diameter of the tube size material that will be welded to the flange.
5.000"
Overall Flange OD
Overall Flange OD
The overall diameter of the flange — measured across the widest part of the seating surface of the flange.
5.750"
Flange Apex Width
Flange Apex Width
The edge thickness of the flange, not including the taper. Note, this measurement is of a single flange, not the combined apex width of both flanges.
0.137"
Flange Base Width
Flange Base Width
Measured from the bottom of the flange, including the taper, up to the base of the flange neck.
0.210"
DETAILS
Clamp Type
V-Band, Quick Release
Fastener Size
5/16"-24
Removable T-Bolt
Removable T-Bolt
• "No" = If stripped or damaged a new clamp will be required.
• "Yes" = If stripped or damaged a replacement T-Bolt Fastener Kit can be purchased.
Yes
Fastener Torque Specs
Dry: 10-14 Ft/Lbs | Lubed: 7.2-10 Ft/Lbs
ADDITIONAL INFORMATION
Product Title
5.000" V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp
SKU / Part Number
22114
Brand / Manufacturer
Ace Race Parts
On-Hand Quantity
On-Hand Quantity
On-hand quantity stocked at our Washington warehouse.
45
UPC Code
840458204113
Product Warranty
Product Warranty
Our detailed product warranty policy can be found here: https://support.aceraceparts.com/en-US/warranty-policy-30022
1-Year Limited Warranty

Disclaimers & Notes
