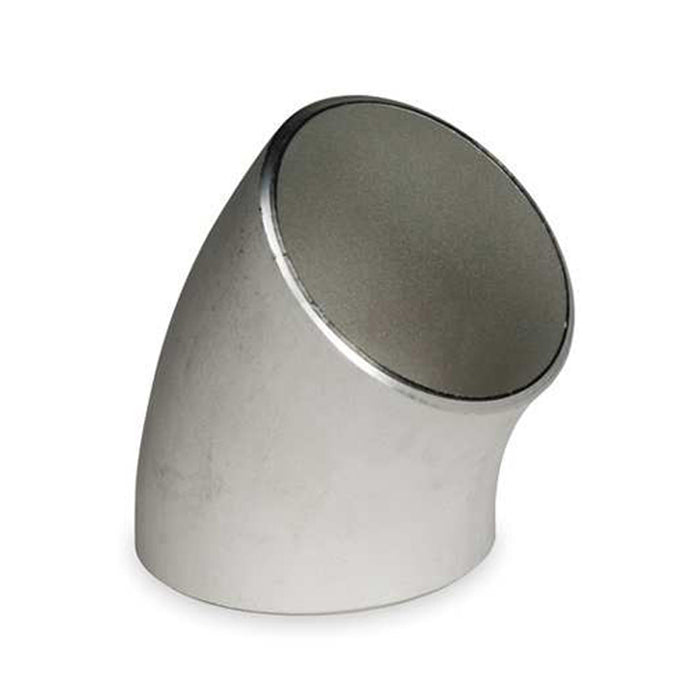

2" Schedule 10 45° Elbow 304 Stainless

SKU 51028
Availability:
116 in stock, ready to be shipped
Original price $ 0
Original price $ 8.79 - Original price $ 8.79
Original price
Current price
$ 8.79
$ 8.79
Current price
$ 8.79

⚠️ SIZE DETAILS — PLEASE READ ⚠️

This is a Nominal Pipe Size item and the dimensions of this item are based on the "Nominal Pipe Size" measurement system. The dimensions of this item differ significantly from those of Tube size material, which is sized by the true outside diameter of the material. Please refer to the dimensional detail table further down this page for the actual measurements of this item.

Description

The Fabricator's Choice for High Horsepower Turbo Manifold Builds!

The Ace Race Parts brand of 2" Schedule 10 pipe bends are the perfect solution for large turbo manifold applications. Our stainless weld els can withstand the punishment, vibration, and heat of a high horsepower street, drag, or track car.

FEATURES

  • 304 Stainless Steel
  • Allows for a Smooth, Unobstructed Flow of Exhaust Gas
  • Durable Enough for a Wide Variety of Turbo Manifold Applications
  • Capable of Withstanding 1,600°F
  • 37.5° Beveled Ends
  • Manufactured to ASTM A403/ASME B16.9 specifications
  • One of the Most Commonly Used Sizes in Turbo LS Builds!

Are you looking for a compatible V-Band Assembly for 2" Nominal Pipe Size material? Our new 2.375" V-Band Assemblies are the perfect match!

Ace Race Parts brand Weld Els are available in nominal pipe sizes ranging from 1-1/4" to 3" and are available in popular alloys like 304 Stainless and 321 Stainless. A wide range of wall thickness options are available, including Schedule 5, Schedule 10, and Schedule 40. Stainless Weld Els can be paired with Stainless Steel Pipe and Stainless Steel Merge Collectors to create a variety of turbo manifold styles.

DETAILS
Nominal Size
Nominal Size
"Nominal Pipe Size", or NPS, is an industry designation, or "trade size", and it is does not reference the actual measured size of the material. The measurement listed in parentheses is the measured OD of the material.
2" (2.375")
Wall Thickness
Wall Thickness
Also referred to as "Schedule". Note, this dimension is only an approximation. The tolerances of pipe size material allow for some variations in the actual wall thickness.
Schedule 10 (0.109"±)
Inside Diameter
Inside Diameter
This is only an approximate measurement! The ID of pipe is a byproduct of the actual OD and wall thickness.
2.157" (Approx.)
Fitting Shape
45°
Centerline Radius
Centerline Radius
For pipe fittings, this dimension is also referred to as "Height". The CLR of a bend is the distance from the center of the bending die to the axis (centerline) of the tube or pipe.
2.750"
Connection Type
Butt-Weld
Important Disclaimers — Must Read
Sizing Disclaimer
Sizing Disclaimer
Pipe size material and Tube size material is NOT compatible. "Nominal Pipe Size", or NPS, is an industry designation, or "trade size", and it is does not reference the actual measured size of the material. Please read our Tube vs Pipe compatibility disclaimer for more information.
Material Tolerance Disclaimer
Material Tolerance Disclaimer
Pipe size material tolerances allow for range of "play" in the sizing of the material. Please read our Pipe Size Material Tolerance Disclaimer for more information.
Dimension Disclaimer
Due to the allowed tolerances of pipe size material (spec: ASTM A403), all dimensions, including OD, ID, Wall Thickness, and Weight are approximate dimensions only. We make no guarantees that any of the dimensions provided for pipe or pipe fittings are exact measurements.
Notes
All ASTM A403 pipe fittings, except for Schedule 5 fittings, have a standard 37.5° bevel (±2.5°) on both ends. All straight lengths of pipe have a plain end with no bevel.
ADDITIONAL INFORMATION
Product Title
2" Schedule 10 45° Elbow 304 Stainless
SKU / Part Number
51028
Brand / Manufacturer
Ace Race Parts
On-Hand Quantity
On-Hand Quantity
On-hand quantity stocked at our Washington warehouse.
116
UPC Code
840458208005
Product Warranty
Product Warranty
Our detailed product warranty policy can be found here: https://support.aceraceparts.com/en-US/warranty-policy-30022
5-Year Limited Warranty

What is Nominal Pipe Size?
