QUICK RELEASE STYLE V-BAND CLAMP — LEAK-FREE INTERLOCKING FLANGE DESIGN

Ace Race Parts brand Quick-Release style V-Band Assemblies are precision CNC machined and feature a 304 Stainless Steel Quick Release style V-Band Clamp and a set of 304 Stainless Steel interlocking "Male/Female" V-Band Flanges. Our Quick Release style V-Band Clamps feature a quick-release latch and a replaceable T-Bolt section that allows for quick assembly and disassembly. For applications where frequent removal of the clamp is required we recommend using our Quick Release style V-Band Clamps and compatible V-Band Flanges.

FEATURES:

• Precision CNC Machined from 304 Stainless Steel

• Male/Female style Interlocking Flanges
• Counterbored to fit matching tube size material
• Removable & Replaceable T-Bolt Fastener
• Perfect for exhaust systems, turbo manifolds, and more!

Our V-Band Flanges utilize an interlocking flange design that ensures a leak-free seal without the need for a gasket and features a counterbore on the weld side of the flange that allows the matching tube size material to slip into the flange. The counterbore is machined to a width of 0.065" and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.

If you need assistance in finding a matching V-Band Clamp or Flange for an existing application please review our "How To Measure A V-Band Flange" information here: How to Measure a V-Band Flange.

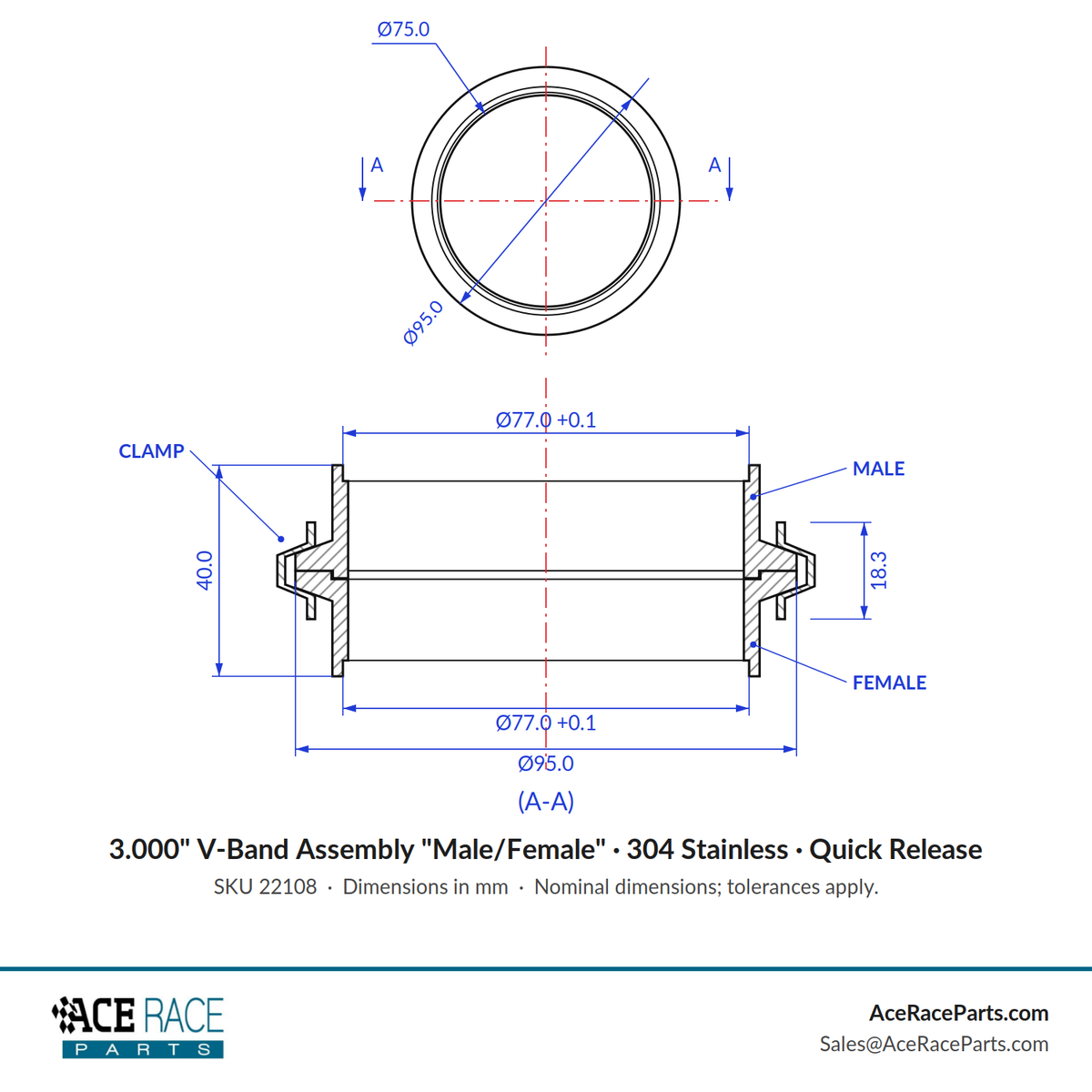

This V-Band Clamp Assembly includes the following items:

• (1) V-Band Clamp, Quick Release, 304 Stainless (SKU: 22124)
• (1) "Male" Interlocking V-Band Flange, 304 Stainless (SKU: 22140)
• (1) "Female" Interlocking V-Band Flange, 304 Stainless (SKU: 22156)
