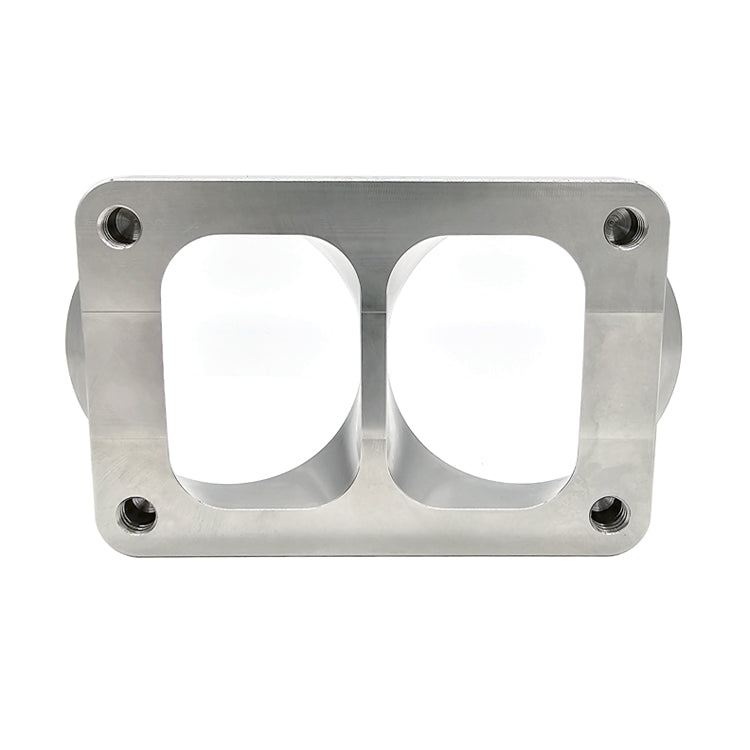

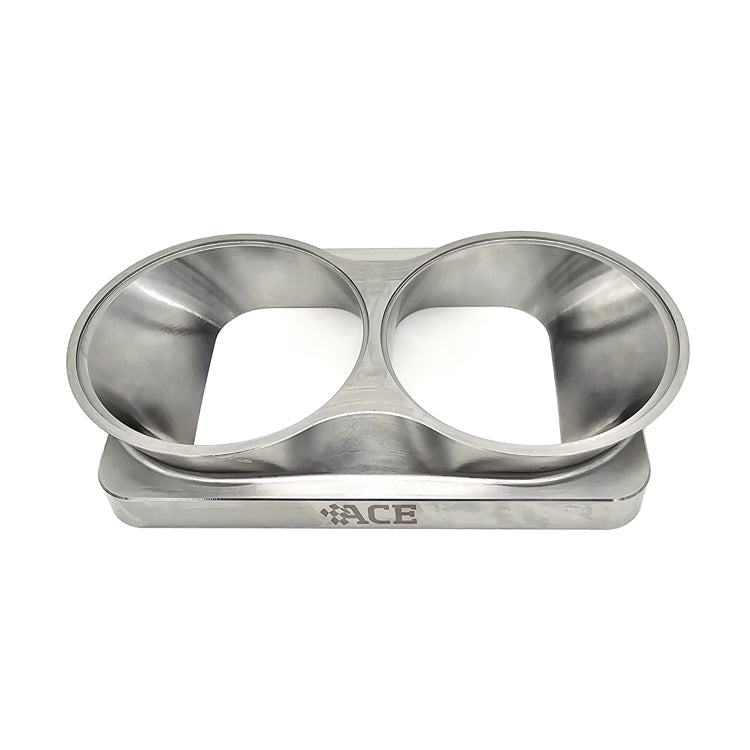

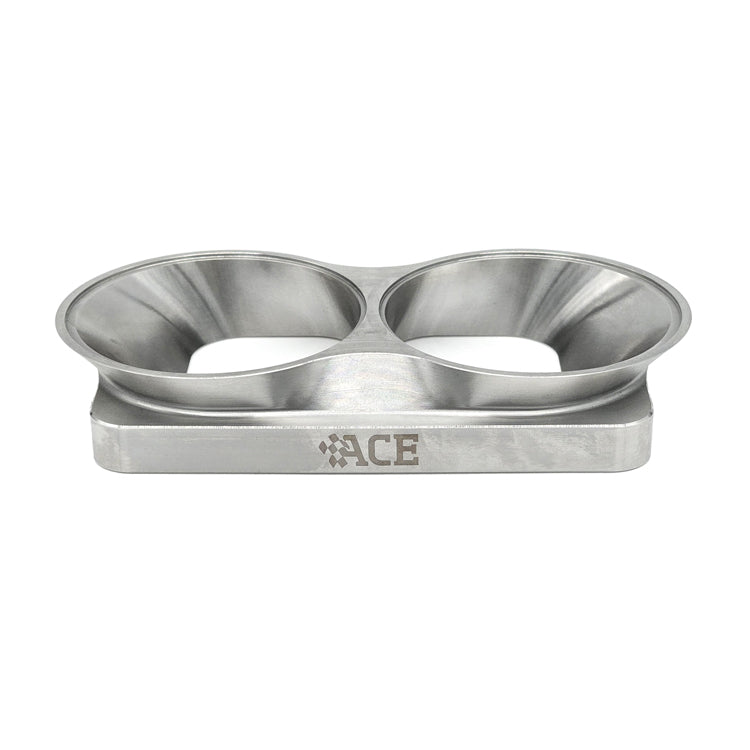

Transition Turbo Flange - Divided T6 to Dual 3.000" OD Tube - 304 Stainless

SKU 27332
Availability:
72 in stock, ready to be shipped
Original price $ 0.00
Original price $ 0.00 - Original price $ 0.00
Original price $ 0.00
Current price $ 215.00
$ 215.00 - $ 215.00
Current price $ 215.00

⚠️ PRODUCT COMPATIBILITY ⚠️

This T6 Turbo Inlet Flange features a 4.500" x 2.750" bolt pattern and is compatible with Garrett and Garrett-based turbos that share this specific bolt pattern. However, it may NOT be compatible with BorgWarner or BorgWarner-based T6 turbos, as they utilize a 4.44" x 2.75" bolt pattern. For proper compatibility, please review the dimensional details of this flange and measure your existing turbo flange.

Description

304 STAINLESS BILLET TRANSITION TURBO FLANGE - DIVIDED T6 TO DUAL 3.000" ID

The Ace Race Parts brand of Transition Turbo Flanges is designed and precision CNC machined to offer the smoothest possible transition from a T6 divided housing to dual 3.000" outside diameter tube size material. Each flange is precision machined from solid 304 Stainless billet and is designed to eliminate warping and deformation during the welding process by ensuring that the base flange thickness measures 0.500" thick. Eliminate costly and time-consuming fabrication work by using our precision machined transition flanges!

FEATURES

  • Divided T6 to Dual 3.000" Diameter Transition
  • Precision CNC Machined from Solid 304 Stainless Steel
  • Extremely Smooth Transition, Compact Design
  • Eliminate Unnecessary Fabrication Work
  • Will Not Warp or Deform!
  • M10 x 1.5 Threaded Bolt Holes
  • 4.500" x 2.750" Bolt Pattern

This T6 Divided Turbo Inlet Flange has a 4.500" x 2.750" bolt pattern and is compatible with the following applications:

  • Generic T6 Turbine Inlets
  • all Garrett GT47 / GTX47
  • all GT50 / GTX50
  • all GTX55
  • all GT60
  • Note: May NOT be compatible with some Borg Warner T6 Turbos, some VS Racing T6 Turbos, or some Forced Induction T6 Turbos. Turbos that utilize the Borg Warner 4.44" x 2.75" bolt pattern are NOT compatible with this flange.

Please be sure to verify the bolt pattern of your existing application before purchasing this Undivided T6 Turbine Inlet Flange.

DIMENSIONS
Bolt Pattern
4.500" x 2.750"
Threaded Holes
Yes, M10 x 1.5
Flange Thickness
Flange Thickness
The overall thickness of the flange. Note, for "transition" style turbo flanges, this is the "base thickness" measurement.
0.500"
Overall Thickness/Height
Overall Thickness/Height
The total thickness, or height, of the transition style turbo flange.
0.894"
Inlet Inside Diameter
Inlet Inside Diameter
The inside diameter of the counterbore of the flange. This should match the outside diameter of the tube size material that will be welded to the flange.
3.000"
DETAILS
Flange/Gasket Type
Turbo; Inlet
Material Type
304 Stainless
Notes
Please review the provided product measurements. It is the customer's responsibility to verify that the bolt circle or bolt pattern of their application matches the dimensions provided for our products.
ADDITIONAL INFORMATION
Product Title
Transition Turbo Flange - Divided T6 to Dual 3.000" OD Tube - 304 Stainless
SKU / Part Number
27332
Brand / Manufacturer
Ace Race Parts
On-Hand Quantity
On-Hand Quantity
On-hand quantity stocked at our Washington warehouse.
72
UPC Code
840458206636
