T4 Undivided Transition Turbo Flange | Ace Race Parts

Transition Turbo Flange - Undivided T4 to Single 2" NPS (2.375" OD) - 304 Stainless

by Ace Race Parts
SKU 27310
Availability:
89 in stock, ready to be shipped
$ 175.00 - $ 175.00
$ 175.00
$ 175.00 - $ 175.00
$ 175.00

Product Dimension Info

Detailed product dimensions can be found on the main product page. If you need further assistance with product dimensions please email us at your convenience.

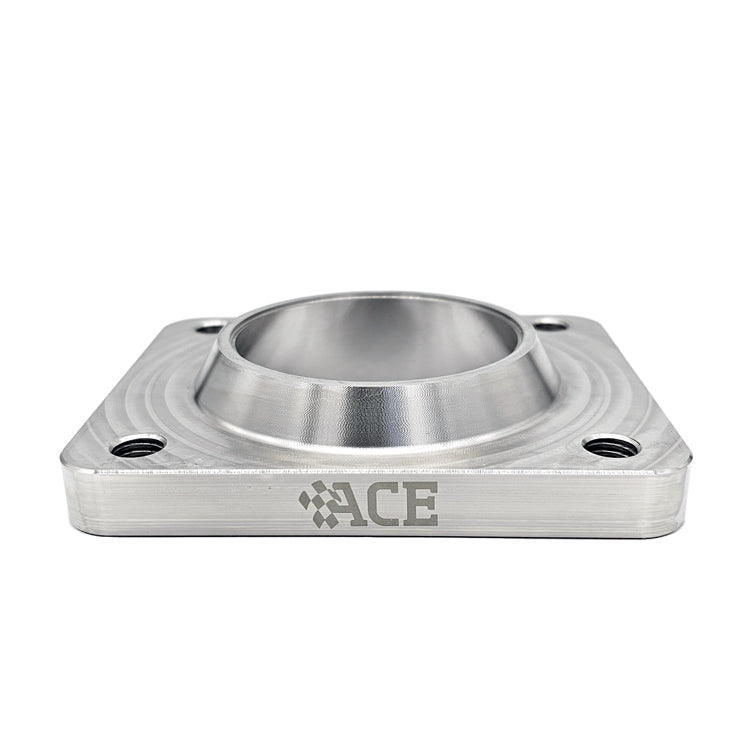

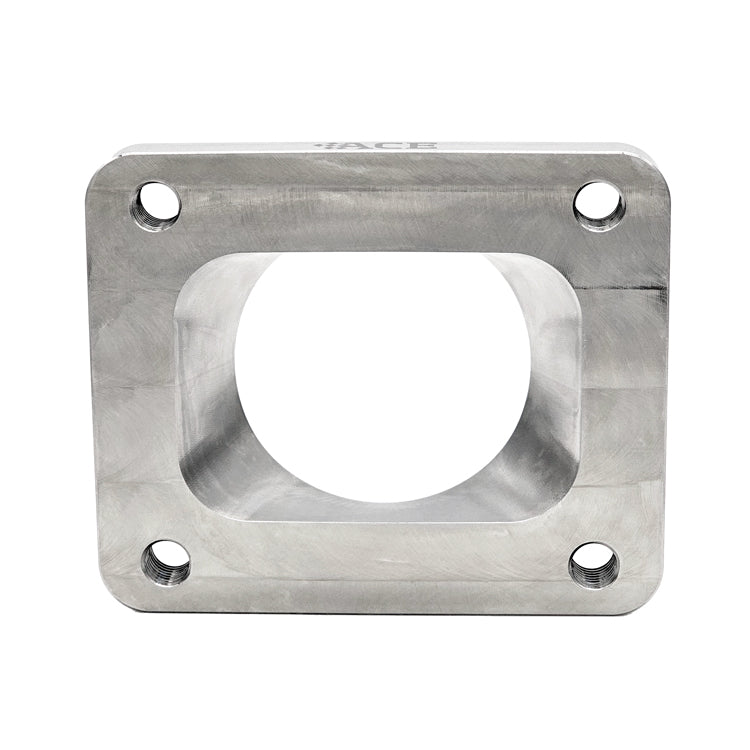

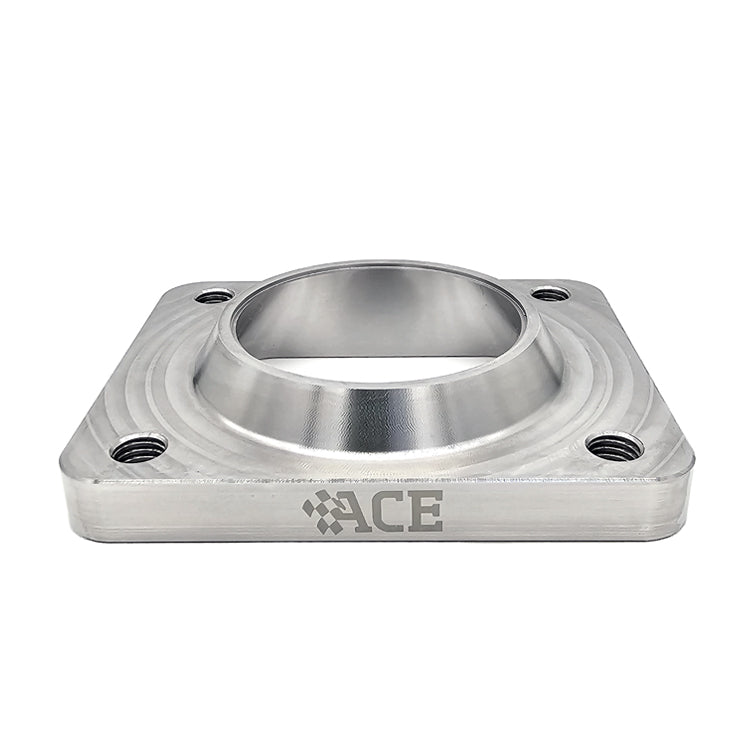

304 STAINLESS BILLET TRANSITION TURBO FLANGE - UNDIVIDED T4 TO SINGLE 2" NPS (2.375" ID)

The Ace Race Parts brand of Transition Turbo Flanges is designed and precision CNC machined to offer the smoothest possible transition from a T4 open housing to 2" nominal pipe size, or 2.375" outside diameter tube size material. Each flange is precision machined from solid 304 Stainless billet and is designed to eliminate warping and deformation during the welding process by ensuring that the base flange thickness measures 0.500" thick. Eliminate costly and time-consuming fabrication work by using our precision machined transition flanges!

FEATURES

  • Undivided T4 to Single 2.375" Diameter Transition
  • Precision CNC Machined from Solid 304 Stainless Steel
  • Extremely Smooth Transition, Compact Design
  • Eliminate Unnecessary Fabrication Work
  • Will Not Warp or Deform!
  • M10 x 1.5 Threaded Bolt Holes
  • 3.250" x 2.750" Bolt Pattern

This Undivided T4 Turbo Inlet Flange has a 3.250" x 2.750" bolt pattern and is compatible with the following applications: Generic T4 Undivided Turbine Inlets. Please be sure to verify the bolt pattern of your existing application before purchasing this Undivided T4 Turbine Inlet Flange.
