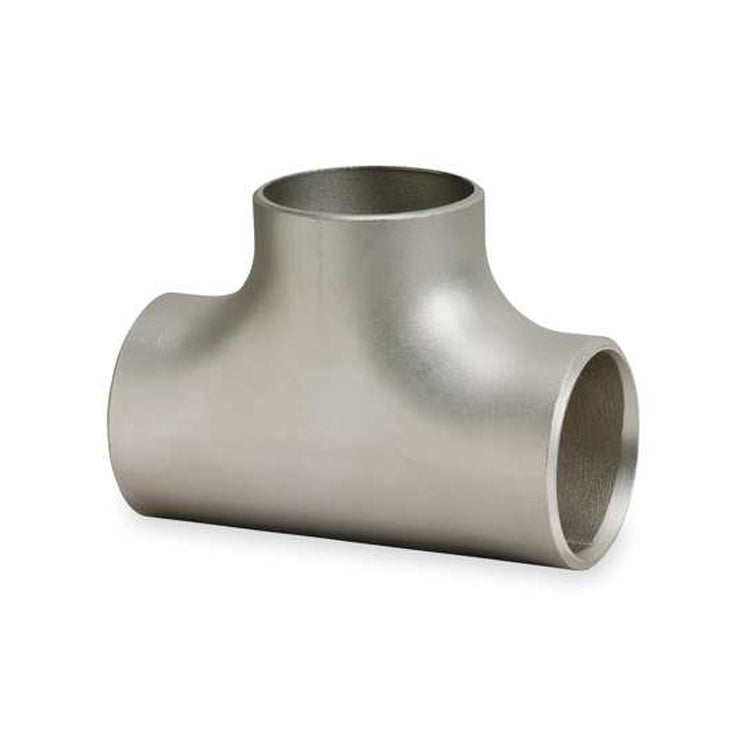

1-1/2" Schedule 10 Tee 304L - Ace Race Parts
1-1/2" Schedule 10 Tee 304 Stainless - Ace Race Parts
1-1/2" Schedule 10 Tee 304L - Ace Race Parts
1-1/2" Schedule 10 Tee 304 Stainless - Ace Race Parts

1-1/2" Schedule 10 Tee 304 Stainless

by Ace Race Parts
SKU 52003
Availability:
31 in stock, ready to be shipped
$ 16.45 - $ 16.45
$ 16.45
$ 16.45 - $ 16.45
$ 16.45

⚠️ Nominal Pipe Size item. Actual dimensions differ from tube size; pipe and tube are not interchangeable. Pipe vs tube · Tolerances

Dimensions at a glance

Nominal Size1-1/2"
Actual OD1.900" (approx.)
WallSchedule 10 (0.109"Ā±)
ID1.682" (Approx.)
FittingTee
Alloy304 Stainless

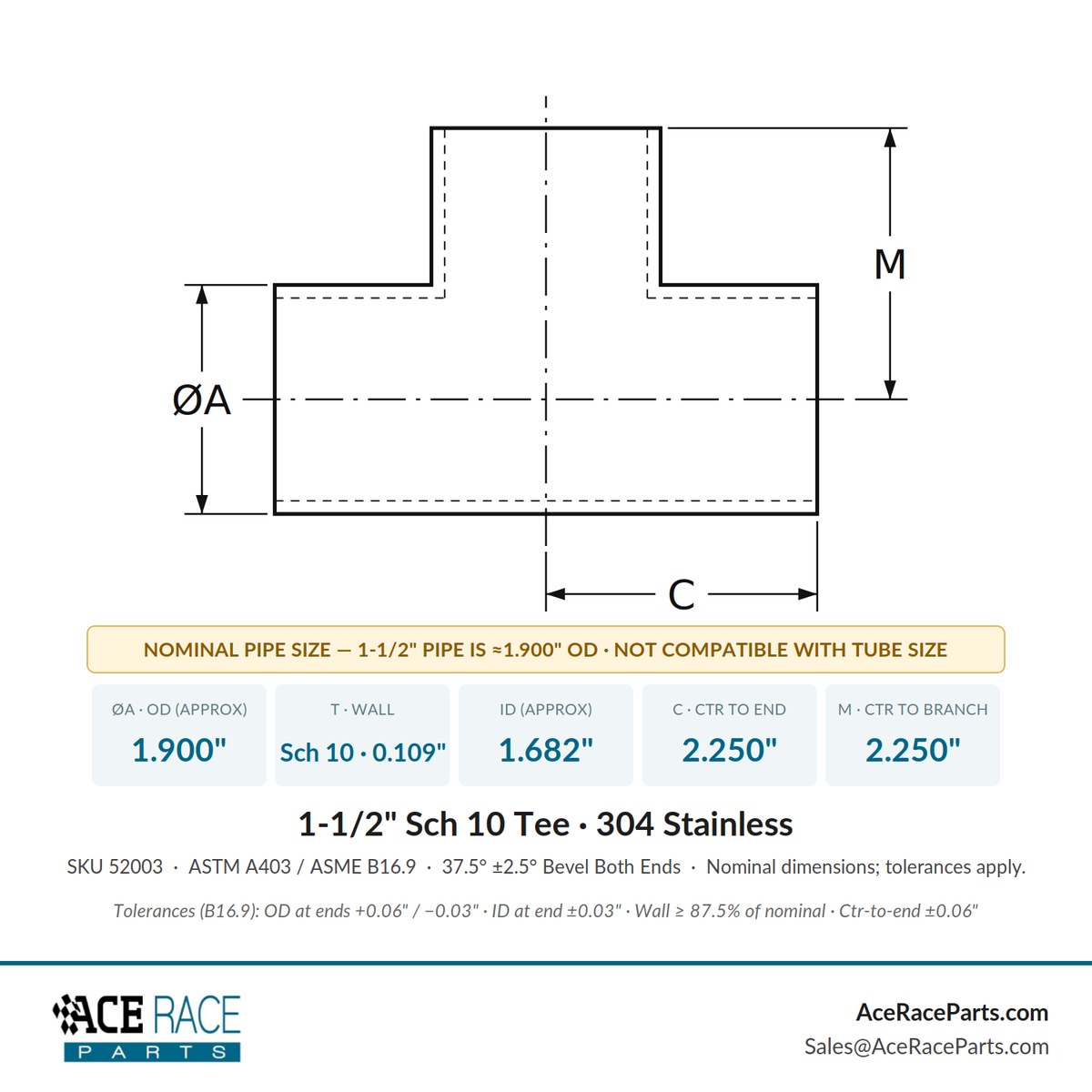

View drawing

Pipe size dimensions are approximate; ASTM pipe and fitting tolerances apply. Pipe size and tube size are not interchangeable. Need another dimension? Email us and we'll help.

The Fabricator's Choice for Turbo Log Manifold Builds!

The Ace Race Parts brand of Schedule 10 1-1/2" stainless steel pipe teesĀ areĀ the perfect solution for small and large turbo manifold applications. Our stainless tee fittings can withstand the punishment, vibration, and heat of a high horsepower street, drag, or track car.

FEATURES:

  • Equal Length Stainless Tee Configuration
  • 304 Stainless Steel
  • Allows for a Smooth, Unobstructed Flow of Exhaust Gas
  • Durable Enough for a Wide Variety of Turbo Manifold Applications
  • Capable of Withstanding 1,600Ā°F
  • 37.5Ā° Beveled Ends
  • Manufactured to ASTM A403/ASME B16.9 specifications
  • An Excellent Choice for Log Manifolds

Ace Race Parts brand Weld Els and Tees are available in nominal pipe sizes ranging from 1-1/4" to 3" and are available in popular alloys like 304 StainlessĀ and 321 Stainless. A wide range of wall thickness options are available, including Schedule 5, Schedule 10, and Schedule 40.Ā Stainless Weld Els can be paired with Stainless SteelĀ PipeĀ and Stainless Steel Merge Collectors to create a variety of turbo manifold styles.
