DELIVERING MORE POWER WITH ENHANCED ACOUSTICS — Z-PIPE BY FORMULA Z
The SuperCar Style Z-Pipe by Formula Z Performance is shaped for mid-engine packaging — a patent-pending crossover that fits in the short run between the engine and rear bumper where no traditional X-pipe will. Originally developed for the McLaren 720S, it is the best choice for most mid-engine builds. Engineered with precision, the Z-Pipe maintains a consistent, unrestricted exhaust pathway without reducing cross-sectional area, promoting smooth, high-velocity gas flow and increasing exhaust scavenging. This advanced design improves throttle response throughout the entire RPM range and boosts volumetric efficiency.
The SuperCar Style is offered with 3.000" ID inlets and outlets to match high-flow mid-engine exhaust systems running 3.000" tubing.

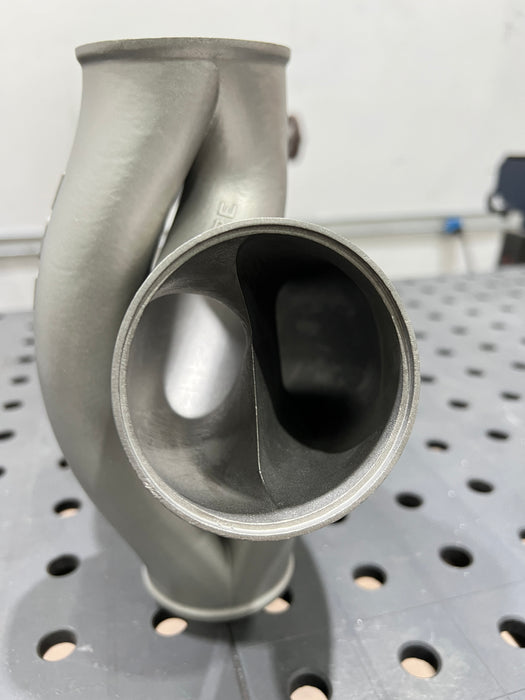

Each Z-Pipe is precisely crafted from high-quality 316L stainless steel using advanced Direct Metal Laser Sintering (DMLS) and Selective Laser Melting (SLM) technologies, ensuring unmatched accuracy and durability — internal geometry that cannot be fabricated from mandrel-bent tube. Installation is straightforward as the Z-Pipe sits completely downstream of all emissions components, and its compact size makes it perfect even for the tightest installations. Experience a refined, clean, and exotic exhaust tone that is distinctly crisp and balanced across both exhaust banks.
FEATURES
- Shaped for mid-engine packaging — fits where traditional crossovers cannot
- Enhanced throttle response across the entire RPM range
- Improved exhaust scavenging effect increases volumetric efficiency and horsepower
- Truly balanced flow between exhaust banks
SPECIFICATIONS
- Inlet/Outlet: 3.000" ID
- Material: 316L stainless steel
- Manufacturing: DMLS / SLM 3D printed

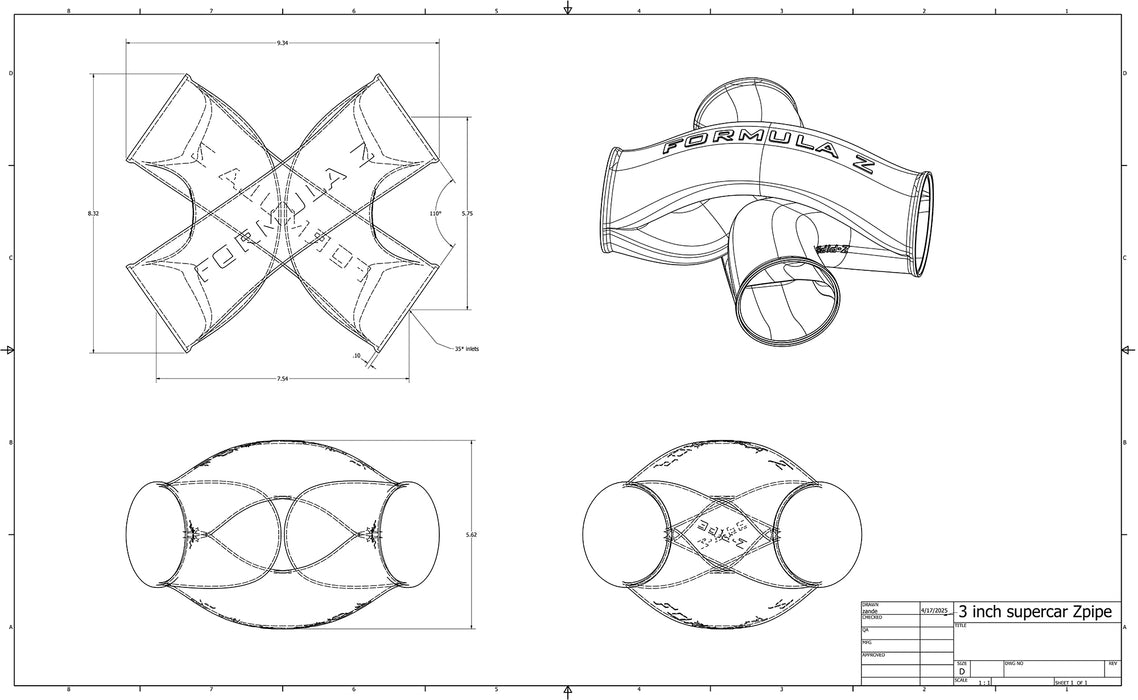

- Overall dimensions: 9.34" L x 5.62" H x 8.32" W
- Weight:
- Connection: Welding Required
APPLICATIONS
Originally designed for the McLaren 720S, the SuperCar Model is the best choice for most mid-engine builds, including the Corvette C8 (non-Z06). It installs downstream of all emissions components — match the Z-Pipe ID to your exhaust tubing size.
McLaren 750S and 765LT: these platforms require extended inlet legs due to their altered turbo positions — email us at support@aceraceparts.com before ordering. Ferrari 458 owners: see our 458-specific Z-Pipe for a direct-fit version.
Other layouts: Straight Classic for front-engine cars with rear-exit dual exhaust, Opposing Style for rear-engine platforms like the Porsche 911, and Center Exit Style for center-exit systems.
For the full breakdown of every model, see our guide: How to Choose the Right Z-Pipe for Your Application.
INSTALLED ON VEHICLE
SuperCar Style Z-Pipe installation examples:
Z-PIPE CROSS-SECTION
FLOW MODEL COMPARISON
X-Pipe vs. H-Pipe vs. Z-Pipe Flow Comparison
