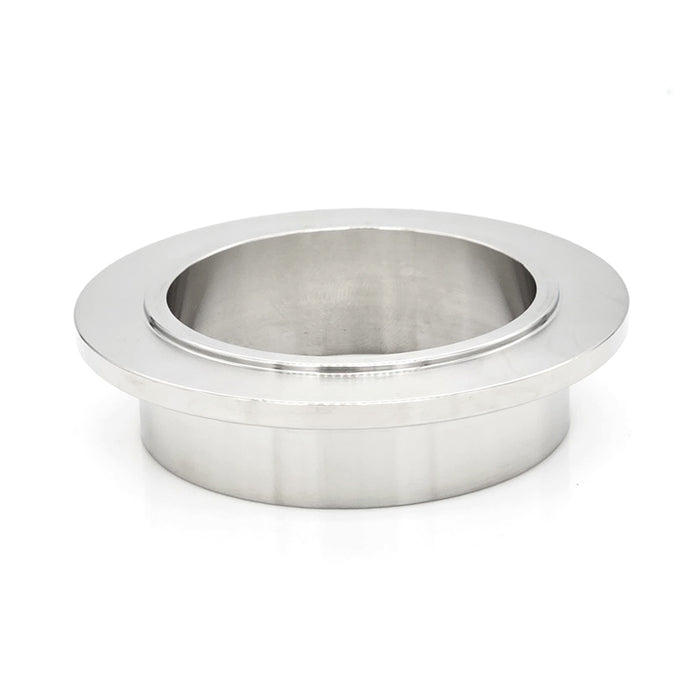

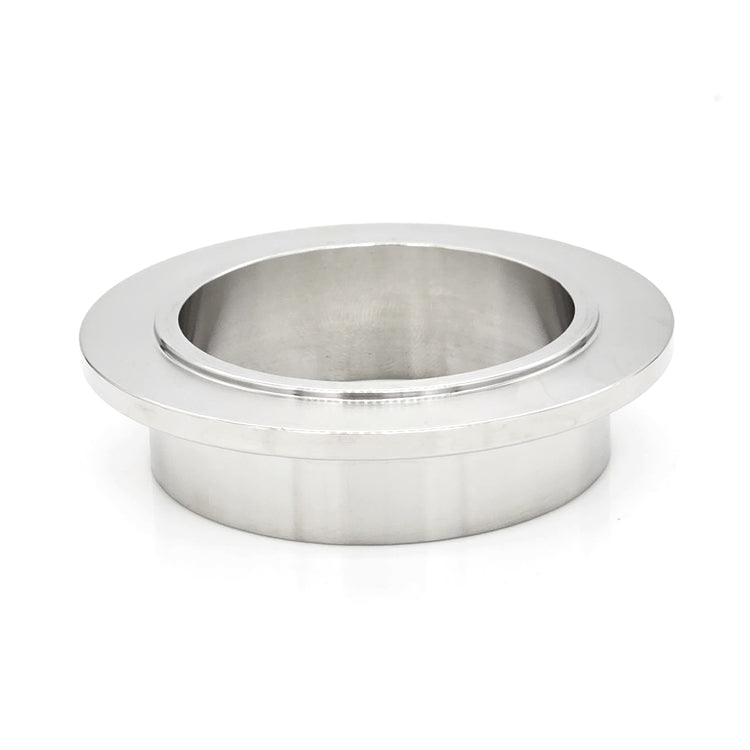

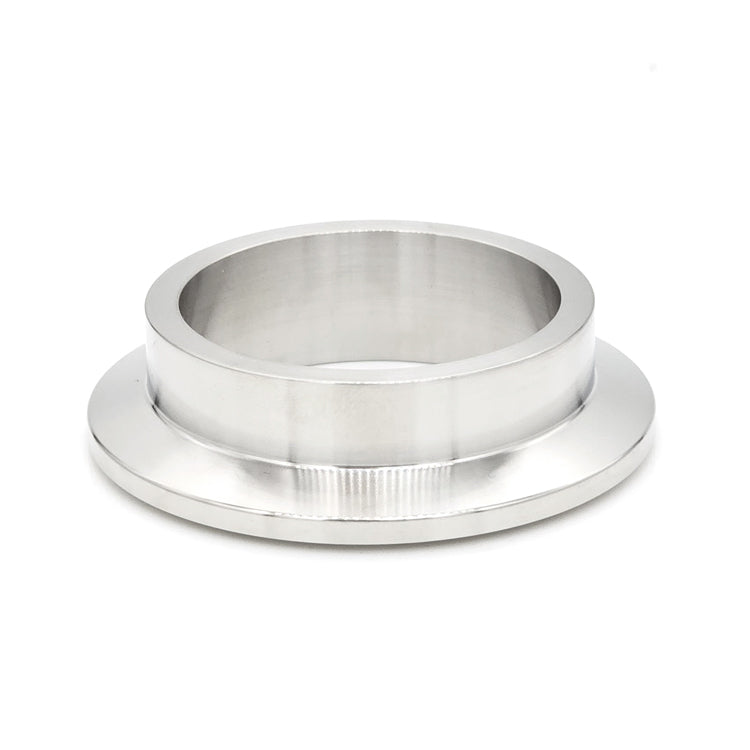

Turbo Inlet Flange - Garrett GT30/GTX30, GT35/GTX35, G25-550 and G25-660 - 304 Stainless

SKU 27160
Availability:
79 in stock, ready to be shipped
Original price $ 0
Original price $ 22.95 - Original price $ 22.95
Original price
Current price $ 22.95
$ 22.95 - $ 22.95
Current price $ 22.95

Product Dimension Info

Detailed product dimensions can be found on the main product page. If you need further assistance with product dimensions please email us at your convenience.

Description

TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

The Ace Race Parts brand of Turbo V-Band Inlet Flanges is precision CNC machined from solid 304 Stainless bar stock and offers durability in the most extreme conditions. Our version of this particular Garrett Turbo Flange is compatible with a variety of Garrett brand turbochargers, including various turbine inlets and turbine outlets (please see the "Compatibility" list provided below). For dimensional details, please view the "Dimensions" table provided below.

FEATURES

  • Precision CNC Machined
  • 304 Stainless Steel
  • For use with Garrett brand Turbochargers

COMPATIBILITY

  • TURBO INLET: All Garrett GT30 & GT35 Tubine Kits with V-Band Inlet
    G25-550, G25-660, G30-660, G30-770, G30-900, G35-900, G35-1050
    GTX2967R, GTX2971R, GTX3071R Gen.2, GTX3076R Gen.2, GTX3576R Gen.2, GTX3582R Gen.2, GTX3584RS
  • TURBO OUTLET: All GT28 Turbine Kits with V-Band Outlet
    Garrett GTX2860R Gen.2 and GTX2867R Gen.2

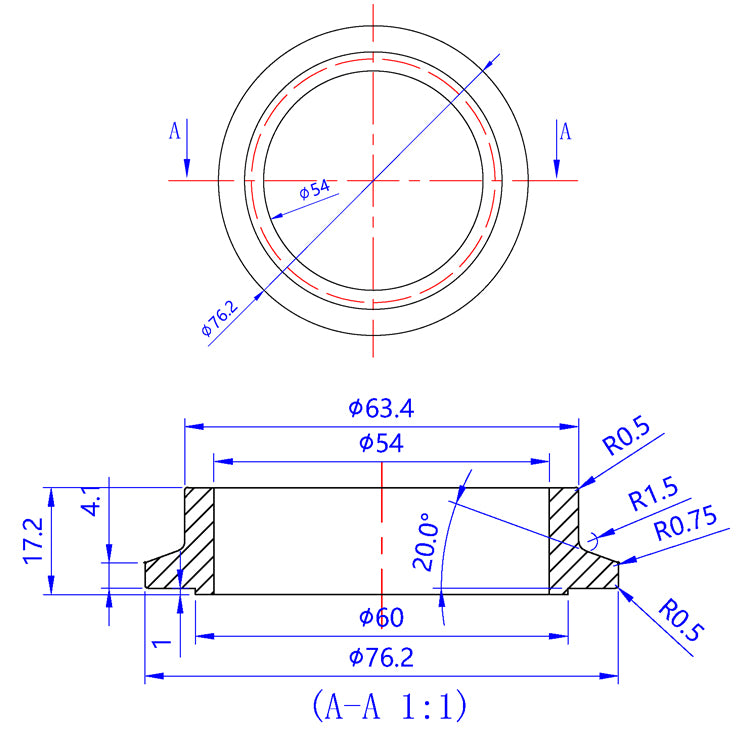

DIMENSIONS
Flange OD (Weld Side)
Flange OD (Weld Side)
The outside diameter of the flange, measured on the weld side of the flange.
2.496" (63.4mm)
Flange ID
Flange ID
The inside diameter of the flange.
2.125" (54mm)
Overall Flange OD
Overall Flange OD
The overall diameter of the flange — measured across the widest part of the seating surface of the flange.
3.000" (76.2mm)
ADDITIONAL INFORMATION
Product Title
Turbo Inlet Flange - Garrett GT30/GTX30, GT35/GTX35, G25-550 and G25-660 - 304 Stainless
SKU / Part Number
27160
Brand / Manufacturer
Ace Race Parts
On-Hand Quantity
On-Hand Quantity
On-hand quantity stocked at our Washington warehouse.
79
UPC Code
840458206384
