Z-Pipe - Corvette C8 Z06/ZR1 Specific - 3.000" ID Inlet/Outlet - 316L Stainless

DELIVERING MORE POWER WITH ENHANCED ACOUSTICS — Z-PIPE BY FORMULA Z

The Corvette C8 Z06/ZR1 Specific Z-Pipe by Formula Z Performance is a direct-fit, patent-pending crossover engineered for the C8 Z06 and ZR1 chassis — routing, clearances, and connection points designed for this platform rather than adapted to it. Engineered with precision, the Z-Pipe maintains a consistent, unrestricted exhaust pathway without reducing cross-sectional area, promoting smooth, high-velocity gas flow and increasing exhaust scavenging. This advanced design improves throttle response throughout the entire RPM range, boosts volumetric efficiency, and gives the flat-plane V8 an even sharper, more exotic edge.

Each Z-Pipe is precisely crafted from high-quality 316L stainless steel using advanced Direct Metal Laser Sintering (DMLS) and Selective Laser Melting (SLM) technologies, ensuring unmatched accuracy and durability — internal geometry that cannot be fabricated from mandrel-bent tube. The Z-Pipe sits completely downstream of all emissions components. Experience a refined, clean, and exotic exhaust tone that is distinctly crisp and balanced across both exhaust banks.

FITMENT

• Fits: Corvette C8 Z06 and ZR1

• Install position: downstream of all emissions components

Non-Z06 C8 owners: your platform uses one of our universal models — see the SuperCar Style Z-Pipe or the Opposing Style Z-Pipe depending on your exhaust configuration, and email us if you are unsure which suits your build.

SPECIFICATIONS

• Inlet/Outlet: 3.000" ID
• Material: 316L stainless steel
• Manufacturing: DMLS / SLM 3D printed

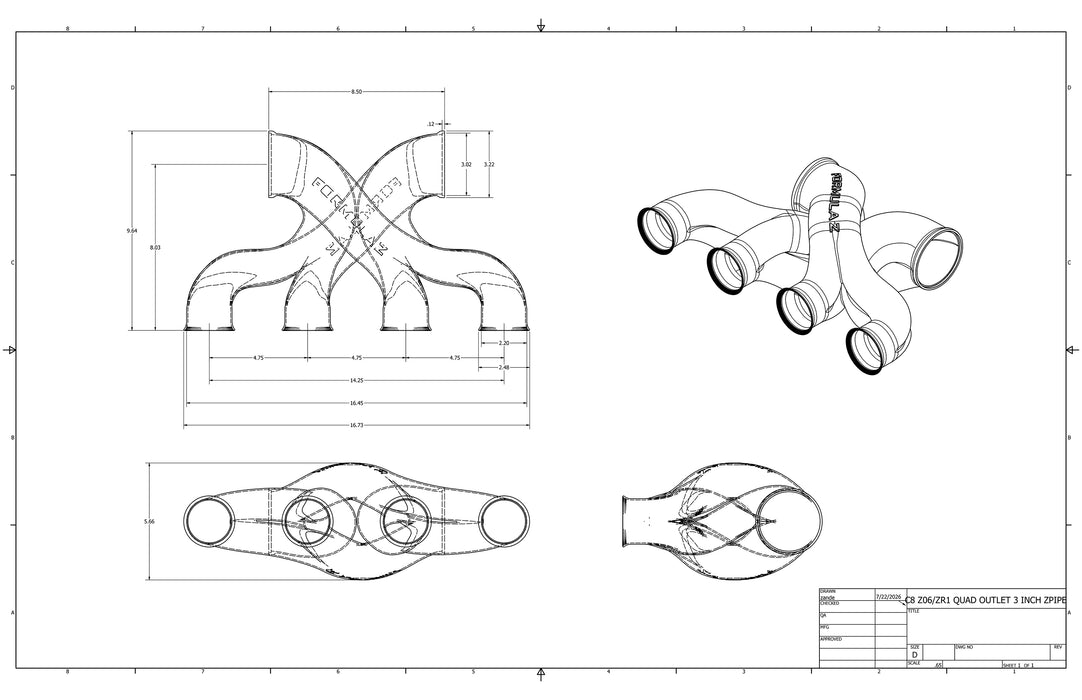

• Overall dimensions: 16.73" L x 5.66" H x 9.64" W
• Weight:
• Connection: Welding Required

Questions on fitment for your specific configuration? Email us at support@aceraceparts.com and we will confirm before you order.

For the full breakdown of every model, see our guide: How to Choose the Right Z-Pipe for Your Application.

INSTALLED ON VEHICLE

C8 Z06 Z-Pipe installation examples by WOR Fabrications:

Z-PIPE CROSS-SECTION

FLOW MODEL COMPARISON

X-Pipe vs. H-Pipe vs. Z-Pipe Flow Comparison
