Also available in: 2.250" ID | 3.000" ID
DELIVERING MORE POWER WITH ENHANCED ACOUSTICS — Z-PIPE BY FORMULA Z
The Opposing Style Z-Pipe by Formula Z Performance routes the two exhaust banks in from opposing directions — a patent-pending crossover built for rear-engine layouts where no conventional X-pipe fits. Its short overall length and taller vertical stack height give it packaging flexibility that traditional crossovers cannot match. Engineered with precision, the Z-Pipe maintains a consistent, unrestricted exhaust pathway without reducing cross-sectional area, promoting smooth, high-velocity gas flow and increasing exhaust scavenging. This advanced design improves throttle response throughout the entire RPM range and boosts volumetric efficiency.
This 2.500" ID version is sized for dual exhaust systems running 2.500" tubing — a common size for performance exhaust builds on rear-engine platforms.
Each Z-Pipe is precisely crafted from high-quality 316L stainless steel using advanced Direct Metal Laser Sintering (DMLS) and Selective Laser Melting (SLM) technologies, ensuring unmatched accuracy and durability — internal geometry that cannot be fabricated from mandrel-bent tube. Installation is straightforward as the Z-Pipe sits completely downstream of all emissions components, and its compact size makes it perfect even for the tightest installations. Experience a refined, clean, and exotic exhaust tone that is distinctly crisp and balanced across both exhaust banks.
FEATURES
- Opposing inlets for layouts where the banks approach from opposite directions
- Short overall length with taller vertical stack height for packaging flexibility
- Improved exhaust scavenging effect increases volumetric efficiency and horsepower
- Truly balanced flow between exhaust banks
SPECIFICATIONS
- Inlet/Outlet: 2.500" ID
- Material: 316L stainless steel
- Manufacturing: DMLS / SLM 3D printed

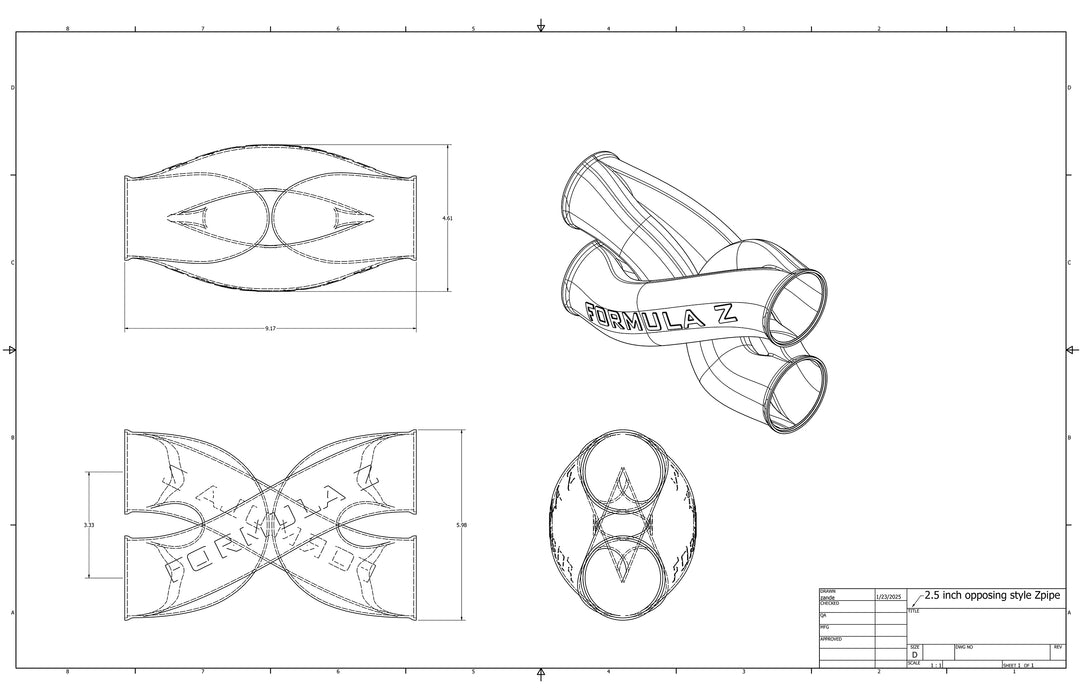

- Overall dimensions: 9.17" L x 4.61" H x 5.98" W
- Weight:
- Connection: Welding Required
APPLICATIONS
The Opposing Model was developed for rear-engine layouts with tight packaging constraints. Primary applications are Porsche 911 platforms and the mid-engine Corvette C8 (non-Z06), along with select rear-engine kit cars. It installs downstream of all emissions components — match the Z-Pipe ID to your exhaust tubing size.
Other layouts: Straight Classic for front-engine cars with rear-exit dual exhaust, SuperCar Style for mid-engine builds, and Center Exit Style for center-exit systems.
For the full breakdown of every model, see our guide: How to Choose the Right Z-Pipe for Your Application.
INSTALLED ON VEHICLE
Opposing Style Z-Pipe installation examples:
Z-PIPE CROSS-SECTION
FLOW MODEL COMPARISON
X-Pipe vs. H-Pipe vs. Z-Pipe Flow Comparison
