Also available in: 2.500" ID
DELIVERING MORE POWER IN A SLIMMER PACKAGE — Z-PIPE BY FORMULA Z
The Ultra-Narrow Z-Pipe by Formula Z Performance packs the patent-pending Z-Pipe design into the slimmest body in the lineup — the same unrestricted crossover performance as the Straight Classic, with zero flow compromise, in a package built for exhaust routing where every fraction of an inch matters. Engineered with precision, the Z-Pipe maintains a consistent, unrestricted exhaust pathway without reducing cross-sectional area, promoting smooth, high-velocity gas flow and increasing exhaust scavenging. This advanced design improves throttle response throughout the entire RPM range and boosts volumetric efficiency.
This 3.000" ID version delivers full 3.000" flow in the narrowest body available — big-tube, high-flow builds where a standard-width crossover simply will not clear.
Each Z-Pipe is precisely crafted from high-quality 316L stainless steel using advanced Direct Metal Laser Sintering (DMLS) and Selective Laser Melting (SLM) technologies, ensuring unmatched accuracy and durability — internal geometry that cannot be fabricated from mandrel-bent tube. Installation is straightforward as the Z-Pipe sits completely downstream of all emissions components, and its ultra-compact size makes it perfect for the very tightest installations. Experience a refined, clean, and exotic exhaust tone that is distinctly crisp and balanced across both exhaust banks.
FEATURES
- Slimmest Z-Pipe body — full crossover performance with zero flow compromise
- Enhanced throttle response across the entire RPM range
- Improved exhaust scavenging effect increases volumetric efficiency and horsepower
- Truly balanced flow between exhaust banks
SPECIFICATIONS
- Inlet/Outlet: 3.000" ID
- Material: 316L stainless steel
- Manufacturing: DMLS / SLM 3D printed

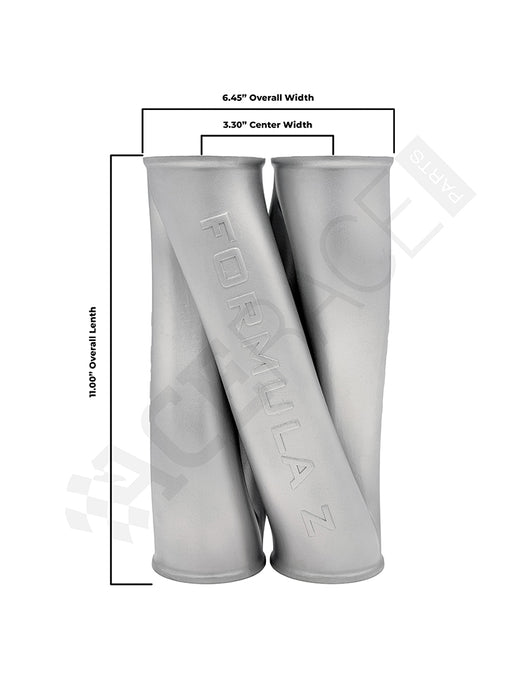

- Overall dimensions: 11.00" L x 3.76" H x 6.45" W
- Weight:
- Connection: Welding Required
APPLICATIONS
The Classic model covers 80–85% of modified vehicles: front-engine cars with rear-exit dual exhaust. It installs downstream of all emissions components in place of a traditional X-pipe or H-pipe — match the Z-Pipe ID to your exhaust tubing size. The Ultra-Narrow is the pick for tight transmission tunnels and low-clearance chassis; for a ground-up build with angled routing, consider the 45° Inlet Classic.
Other layouts: Opposing Style for rear-engine platforms like the Porsche 911, SuperCar Style for mid-engine builds, and Center Exit Style for center-exit systems.
For the full breakdown of every model, see our guide: How to Choose the Right Z-Pipe for Your Application.
ULTRA-NARROW VS. CLASSIC
The Ultra-Narrow trades body width for clearance, not flow — the internal pathway keeps the same constant cross-sectional area as the standard Classic. Choose the Ultra-Narrow when the installation is width-limited; if you have the room, the standard Straight Classic 3.000" is the default choice.
Z-PIPE CROSS-SECTION
FLOW MODEL COMPARISON
X-Pipe vs. H-Pipe vs. Z-Pipe Flow Comparison
